Chapter 10. Copy services 523

2. In the Create FlashCopy Mapping window (Figure 10-24), you must select one FlashCopy

preset. The GUI provides the following presets to simplify common FlashCopy operations:

– Snapshot

– Clone

– Backup

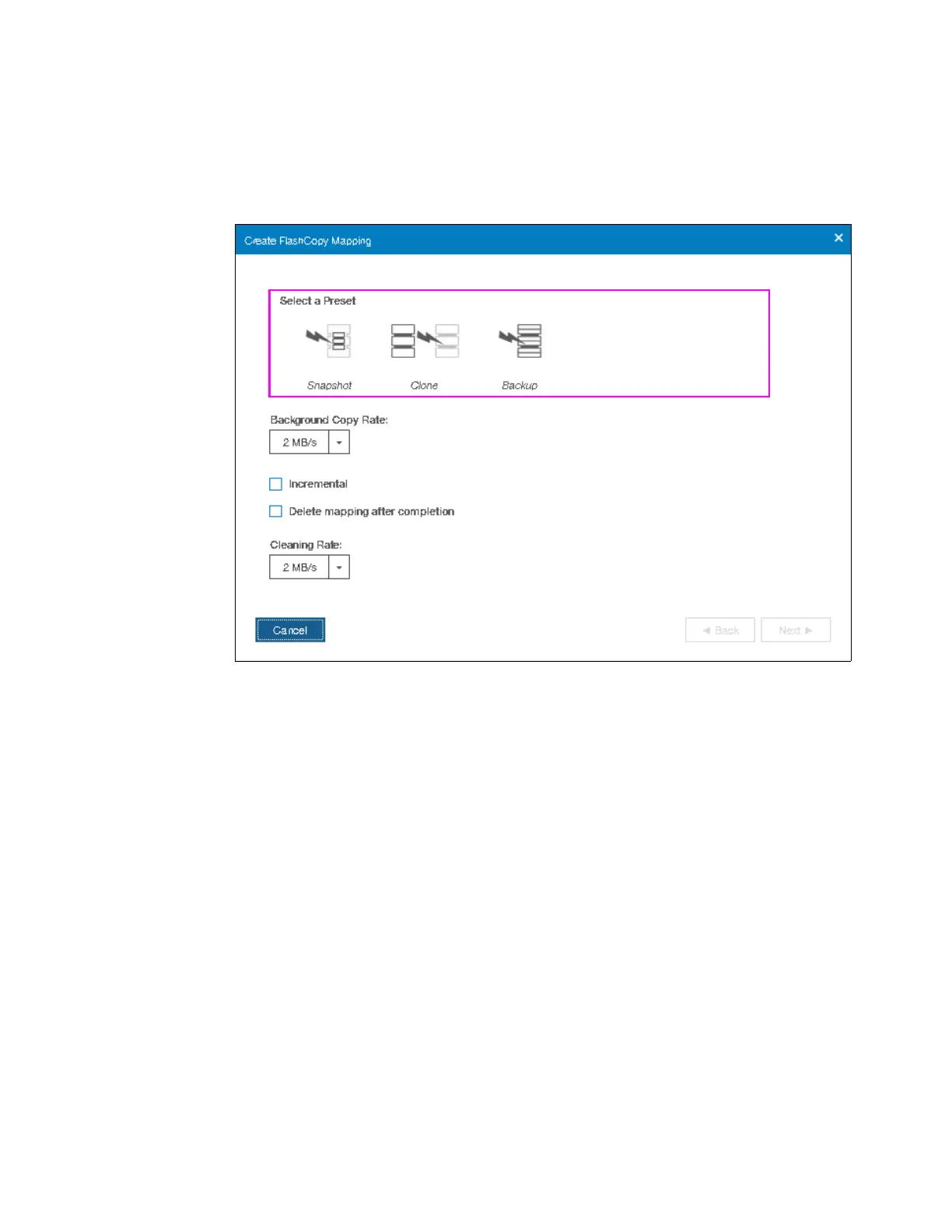

Figure 10-24 Create FlashCopy Mapping window
