526 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

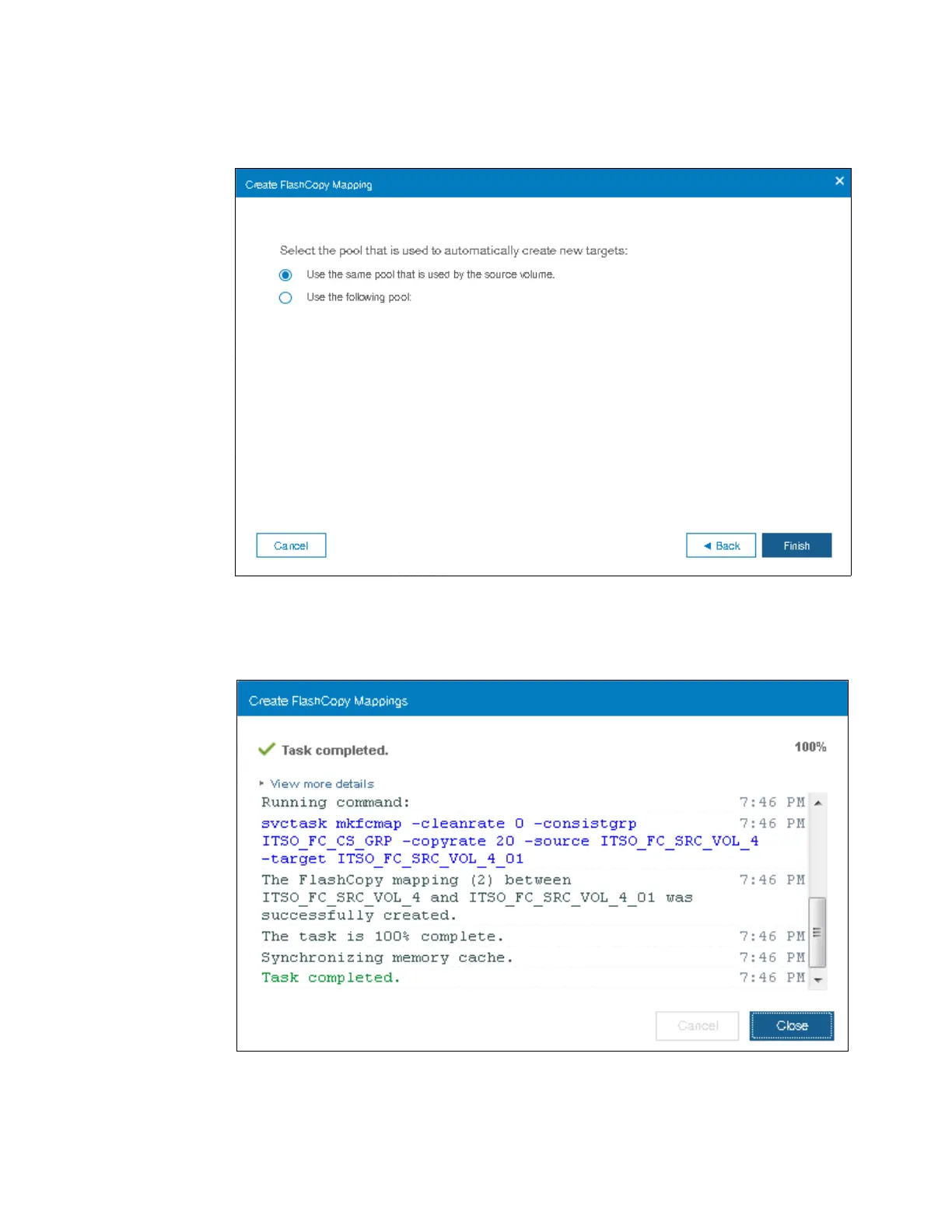

7. Click Next and you will be asked to select the desired storage pool in which the new

FlashCopy target volume needs to be created, as shown in Figure 10-28.

Figure 10-28 Pool selection

8. Click Finish and you will see a window indicating the status of the operation, as shown in

Figure 10-29.

Figure 10-29 FlashCopy map and target volume created
