Chapter 10. Copy services 537

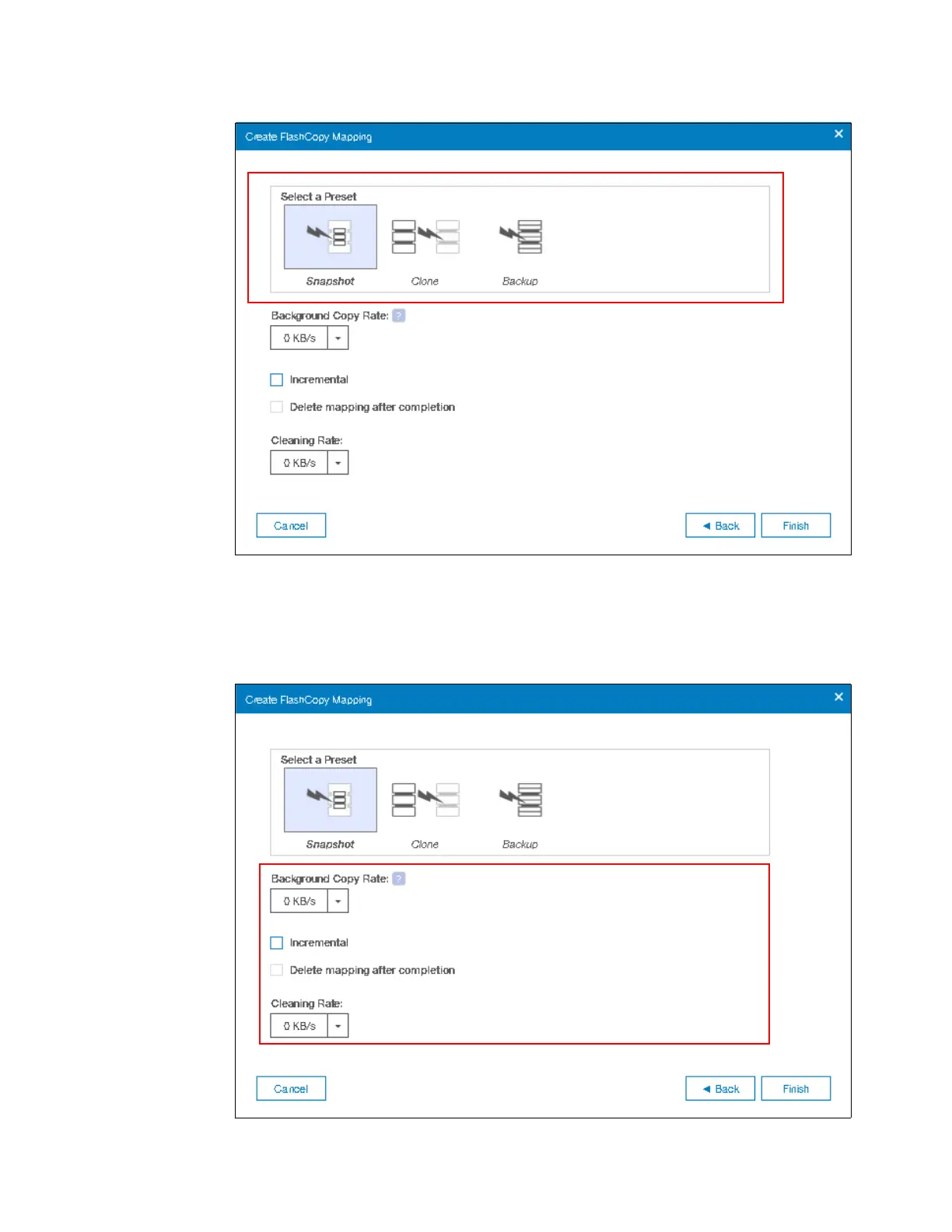

Figure 10-47 Create FlashCopy Mapping window

Whichever preset you select, based on that you can customize options based on the

selected preset, as shown in Figure 10-48.

If you prefer not to customize these settings, go directly to step 9.

Figure 10-48 Create FlashCopy Mapping: Preset customization
