632 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

Data flow

The host reads and writes data to the local I/O group within the same site. The HyperSwap

system sends the data to the remote site by using internal Metro Mirror, as shown in

Figure 10-158.

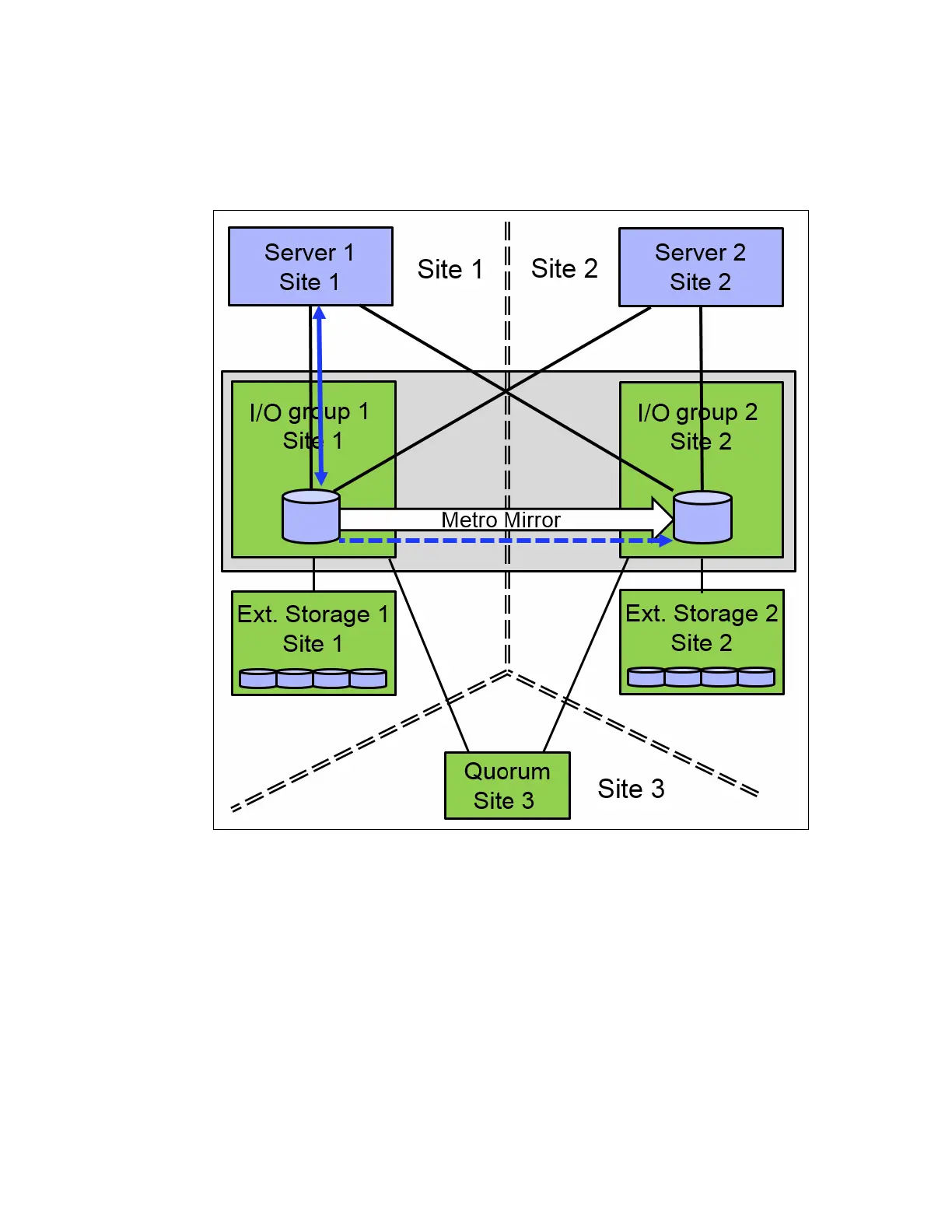

Figure 10-158 Data flow for a single volume
