656 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

6. Click Show Dependent Volumes to display the logical volumes that depend on the

selected external storage system, as shown in Figure 11-20.

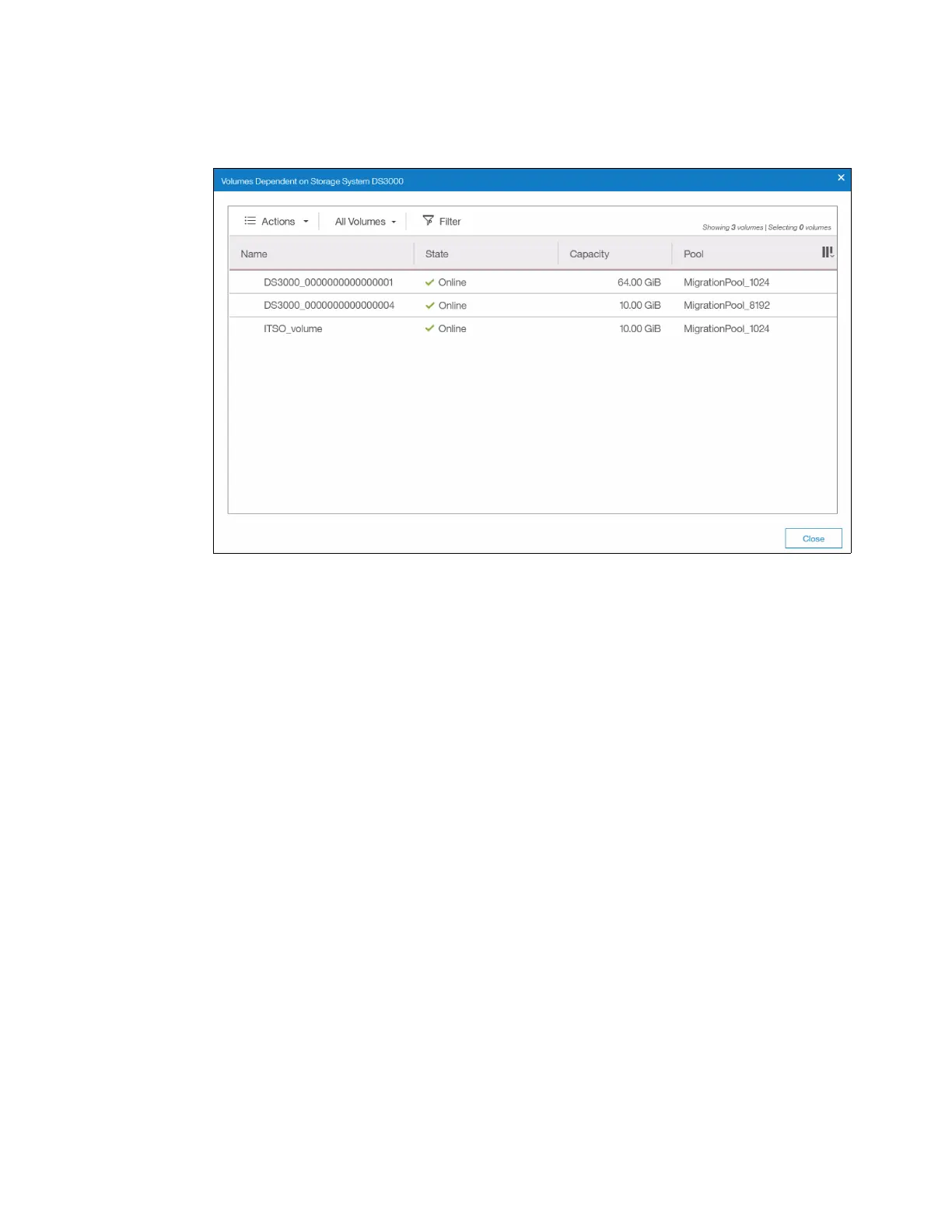

Figure 11-20 Volumes that depend on the external storage
