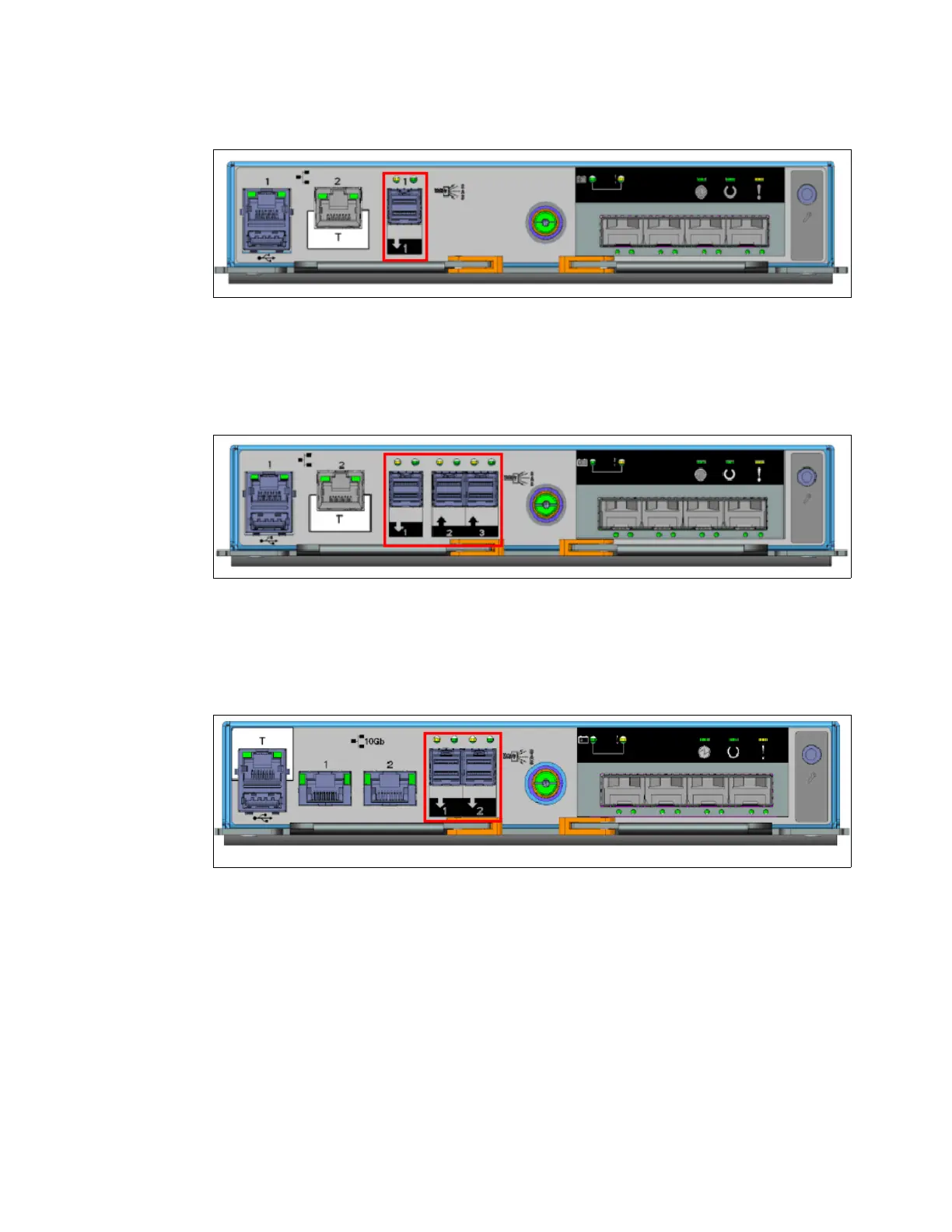

Figure 12-6 shows the SAS ports on the Storwize V5010.
Figure 12-6 Storwize V5010 SAS ports
Each Storwize V5020 node canister has three 12 Gbps SAS ports. Port 1 can be used to
connect optional expansion enclosures, and ports 2 and 3 can be used for host attachment.
Figure 12-7 shows the SAS ports on the Storwize V5020.
Figure 12-7 Storwize V5020 SAS ports
Each Storwize V5030 node canister has two 12 Gbps SAS ports to connect optional
expansion enclosures. This port does not support host attachment.
Figure 12-8 shows the SAS ports on the Storwize V5030.
Figure 12-8 Storwize 5030 SAS ports
