678 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

The Storwize V5030 supports two SAS chains for each control enclosure, and up to 10

expansion enclosures can be attached to each chain. The node canister uses SAS port 1 for

expansion enclosures.

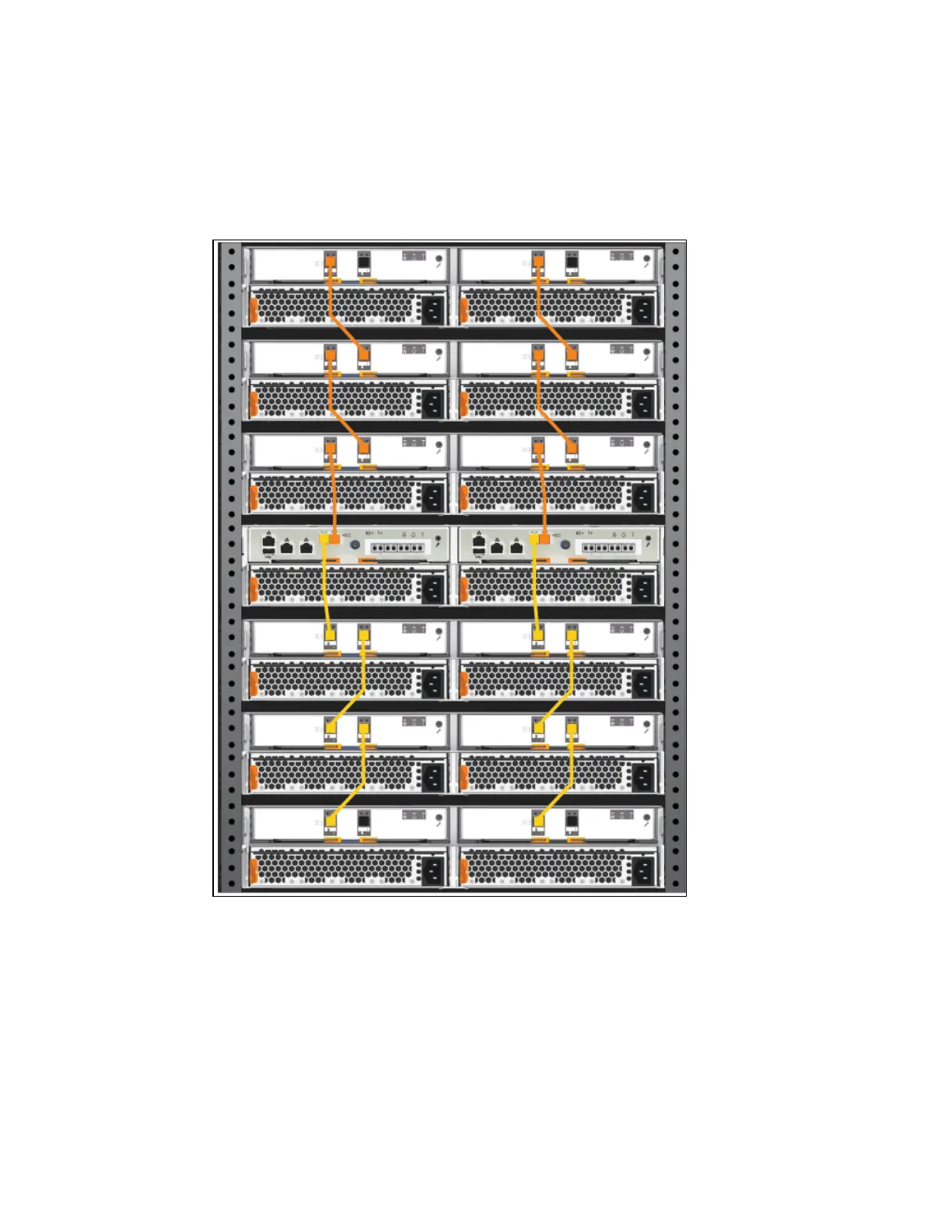

Figure 12-21 shows the SAS cabling on a Storwize V5030 with six attached expansion

enclosures (three enclosures in each chain).

Figure 12-21 SAS expansion cabling on the Storwize V5030
