684 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

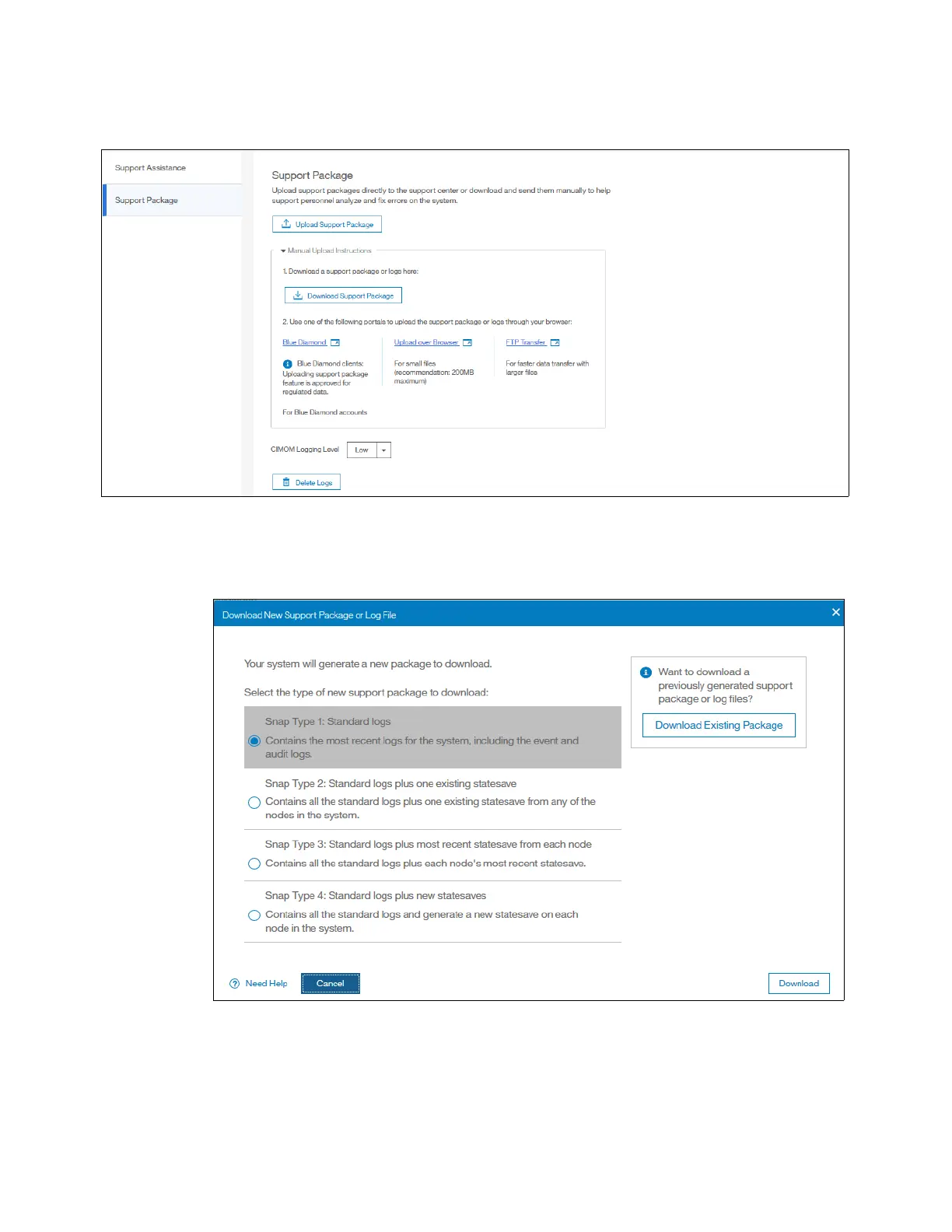

When you select Manual Upload Instructions, a window opens (Figure 12-25).

Figure 12-25 Download Support Package

2. Pressing the Button Download Support Package brings you to the next option, where

you can select the different kinds of Support packages, see Figure 12-26 for details.

Figure 12-26 Download Support Package
