Chapter 12. RAS, monitoring, and troubleshooting 723

Using the management GUI

To configure remote support assistance, complete the following steps:

1. Select I want support personnel to access my system both on-site and remotely, as

shown in Figure 12-96.

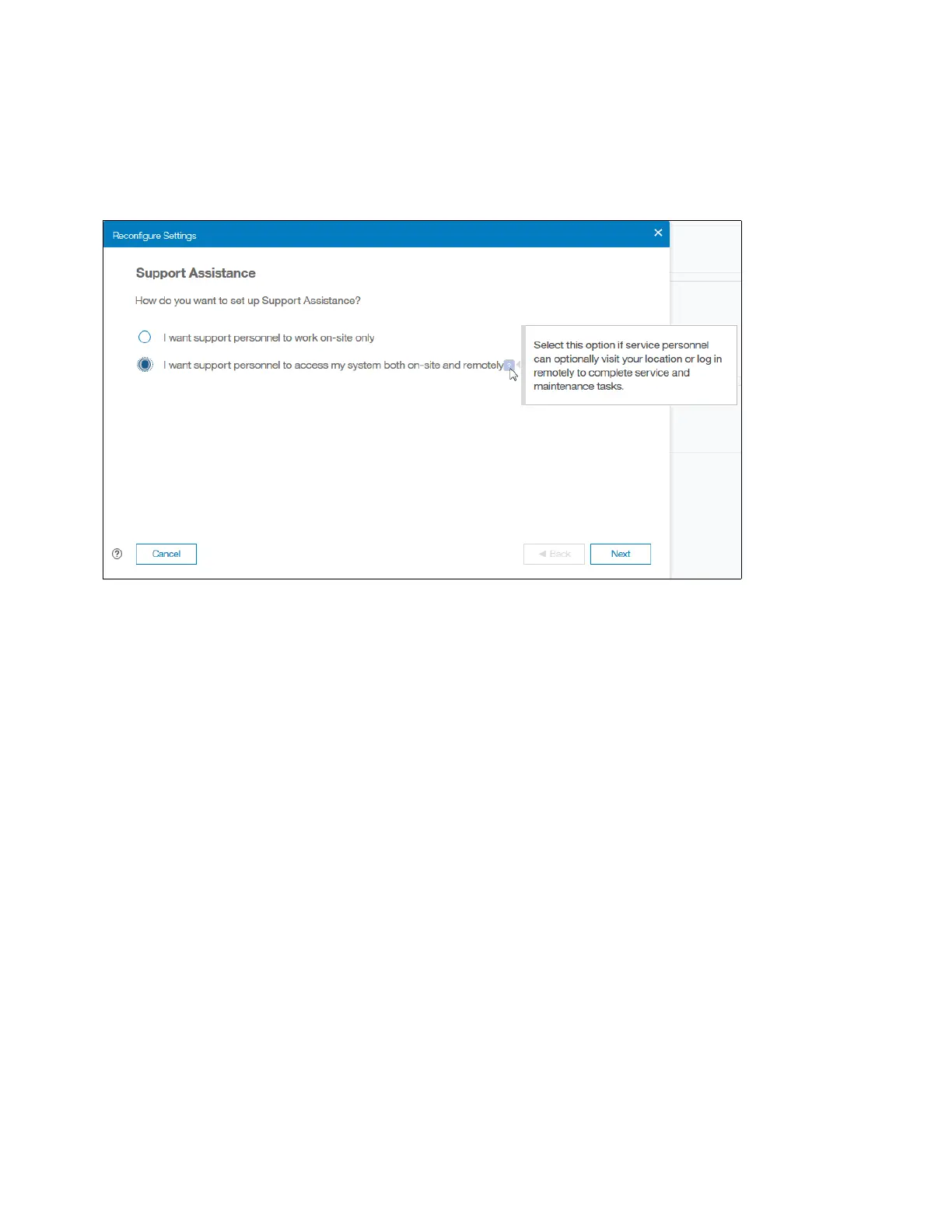

Figure 12-96 Enable remote support
