732 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

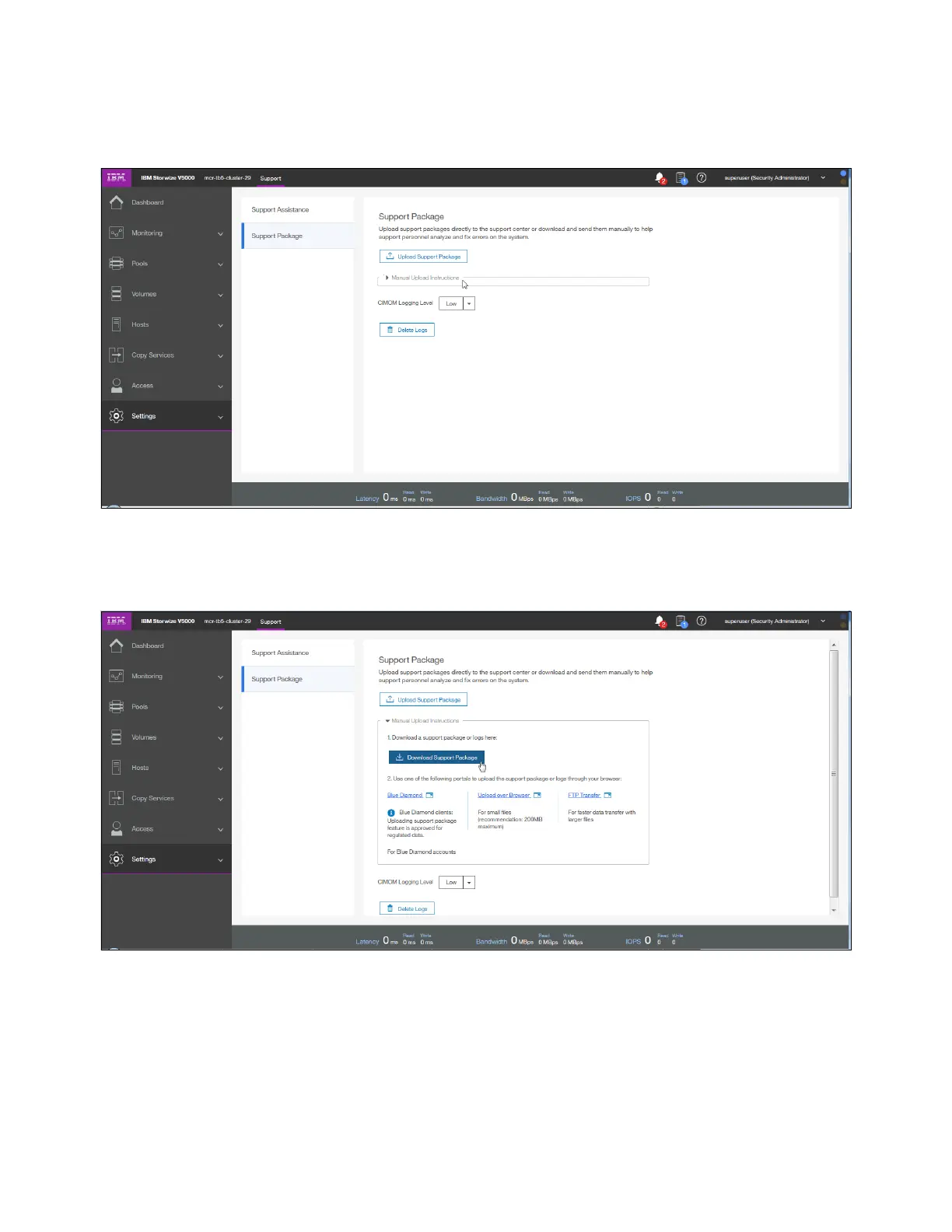

2. On the Support Package page, expand Manual Upload Instructions, as shown in

Figure 12-105.

Figure 12-105 Manual Upload Instructions

3. In the Manual Upload Instructions section, click Download Support Package. See

Figure 12-106.

Figure 12-106 Download Support Package
