Chapter 2. Initial configuration 57

3. Verify the prerequisites in the Welcome window as shown in Figure 2-23 and click Next.

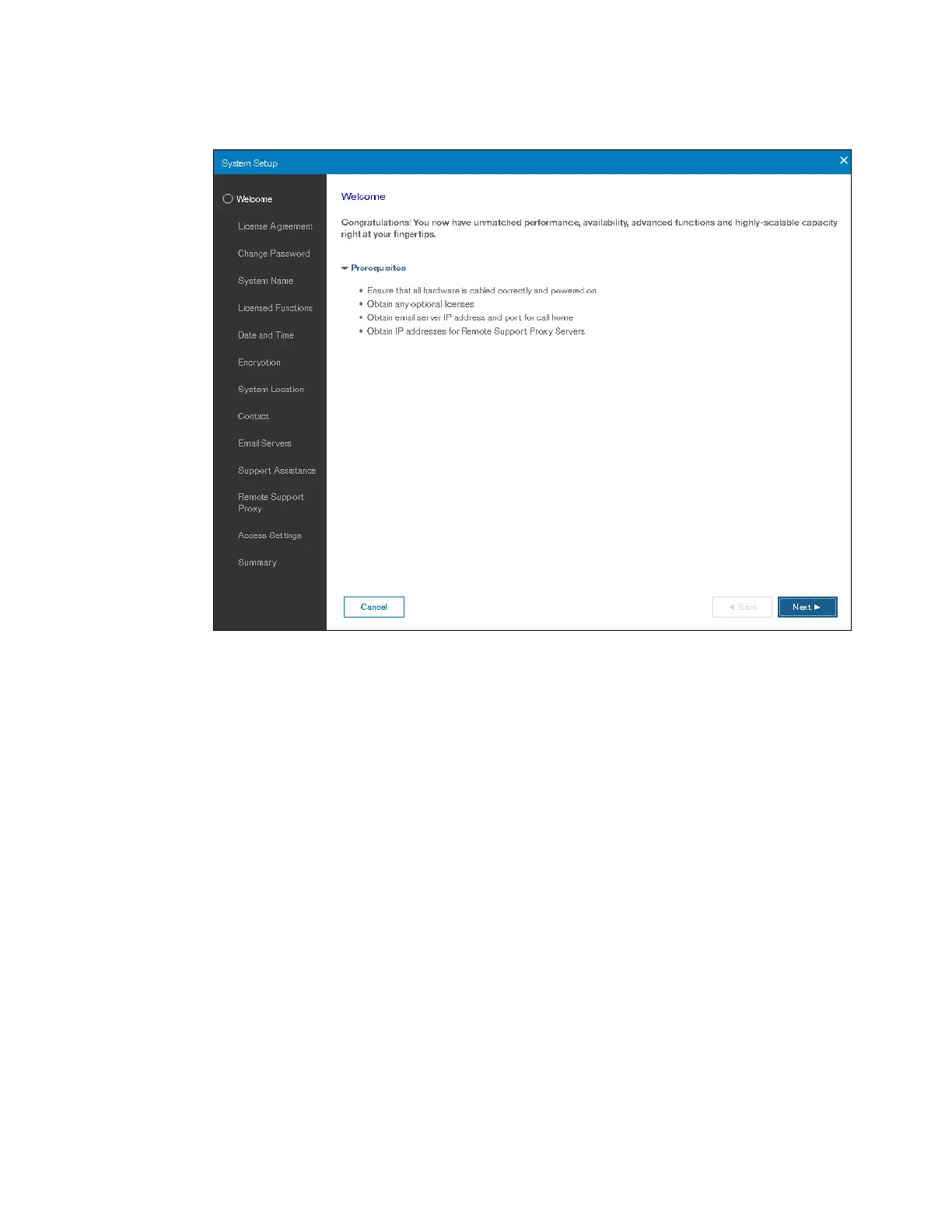

Figure 2-23 Setup wizard: Welcome

4. Accept the license agreement after reading it carefully as shown in Figure 2-24 on

page 58 and click Next.
