770 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

8. Subsequently, configure the SKLM key server to trust the SSL certificate of the IBM

Spectrum Virtualize system. You can download the IBM Spectrum Virtualize system public

SSL certificate by clicking Export Public Key, as shown in Figure 13-35. You should

install this certificate in the SKLM key server in the SPECTRUM_VIRT device group.

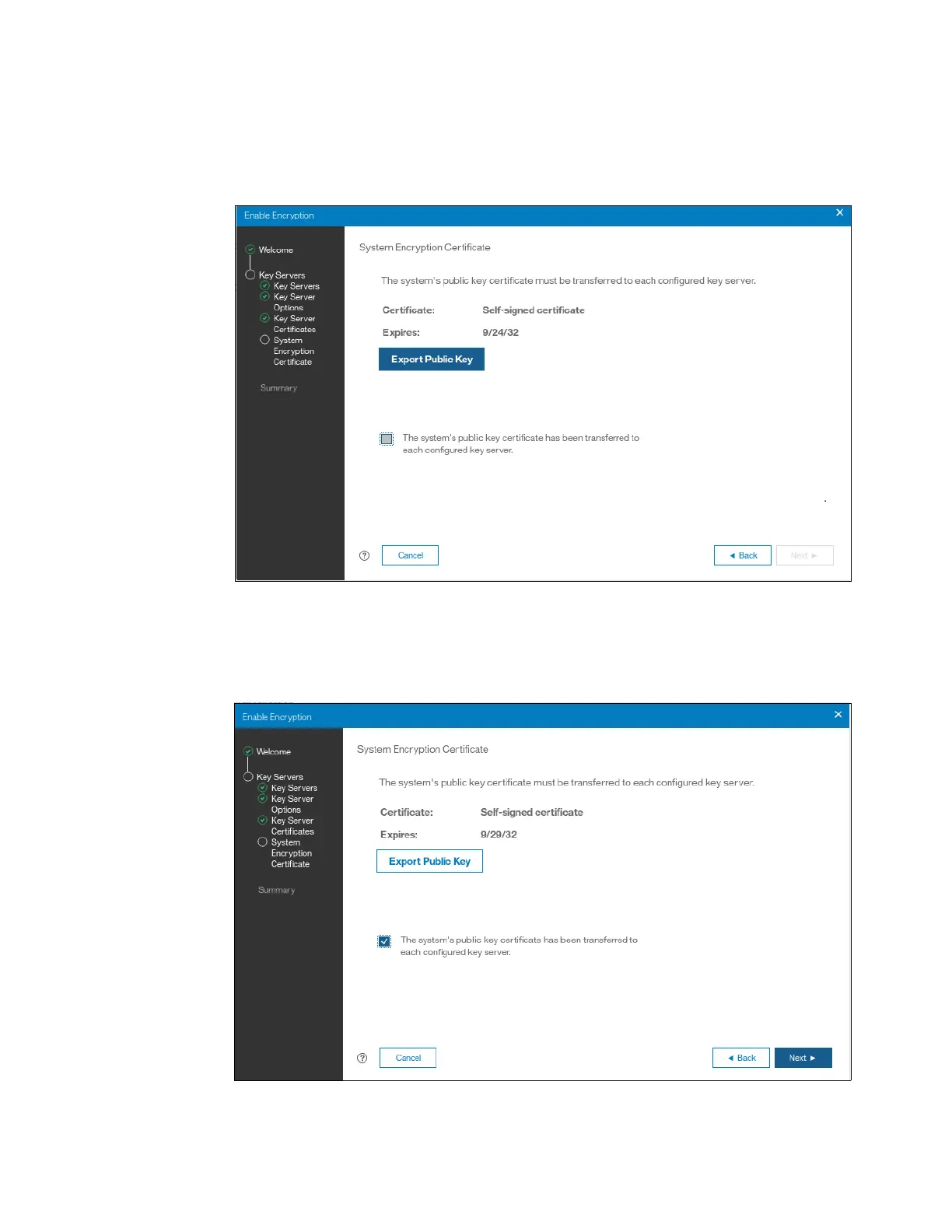

Figure 13-35 Downloading the Spectrum Virtualize SSL certificate

9. When the IBM Spectrum Virtualize system SSL certificate has been installed on the SKLM

key server, acknowledge this by selecting the box indicated in Figure 13-36 and click Next

to proceed to the next step.

Figure 13-36 Acknowledge Spectrum Virtualize SSL certificate transfer
