76 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
After you are logged in, you see the Service Assistant Tool Home window, as shown in
Figure 2-49.

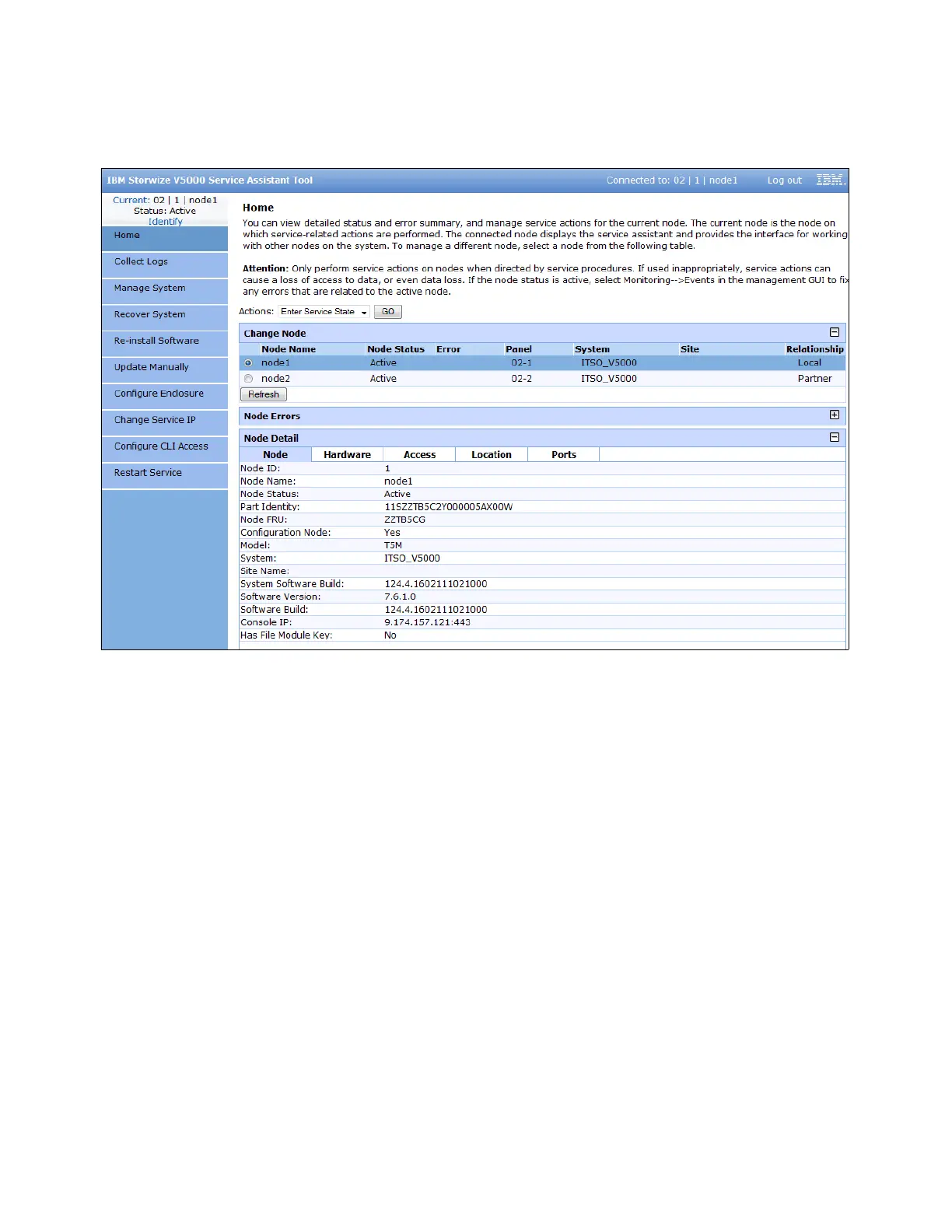

Figure 2-49 Service Assistant Tool Home window
The current canister node is displayed in the upper-left corner of the GUI. As shown in
Figure 2-49, the current canister node is node 1. To change the canister, select the relevant
node in the Change Node section of the window. You see that the details in the upper-left
corner change to reflect the new canister.
The SA GUI provides access to service procedures and shows the status of the node
canisters. We advise that you perform these procedures only if you are directed to use them
by IBM Support.
For more information about how to use the SA Tool, see the following website:
https://ibm.biz/BdjSJq
