366 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
Configuring hosts
Follow this step of the wizard to select or configure new hosts as required. Figure 7-18 shows
the Configure Hosts (optional) panel. If hosts are defined, they are listed in the panel as
shown in Figure 7-20 on page 368.
1. If no hosts are defined, they can be created by selecting the Add Host option.

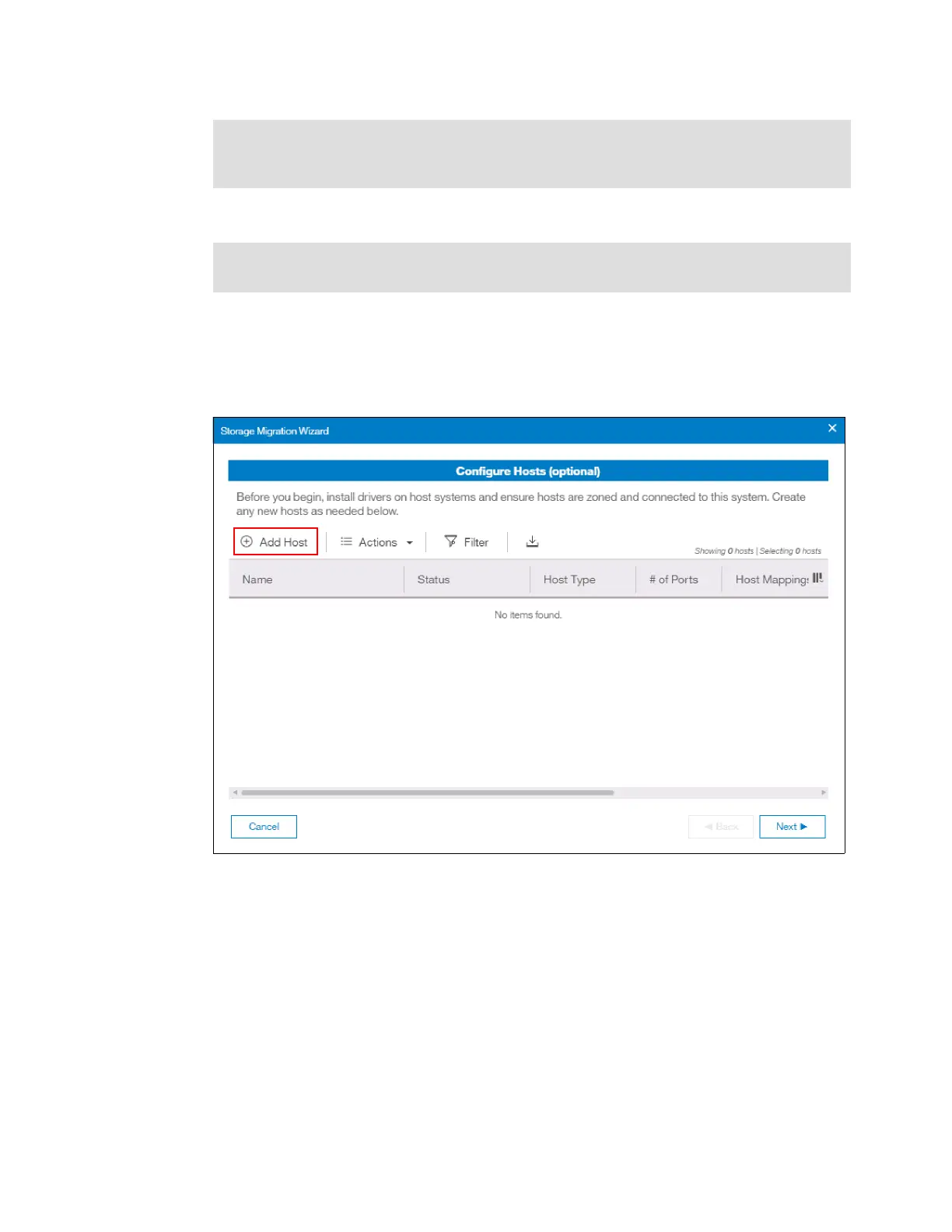

Figure 7-18 Configure Hosts panel
MDisk selection: Select only the MDisks that are applicable to the current migration plan.
After the current migration completes, you can start another migration to migrate any
remaining MDisks.
Note: This step is optional. You can bypass it by selecting Next and moving to “Mapping
volumes to hosts” on page 368.
