414 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

To export to an image mode volume, complete the following steps:

1. Select the volume that you want. From the Actions menu, choose Export to Image Mode,

as shown in Figure 8-50.

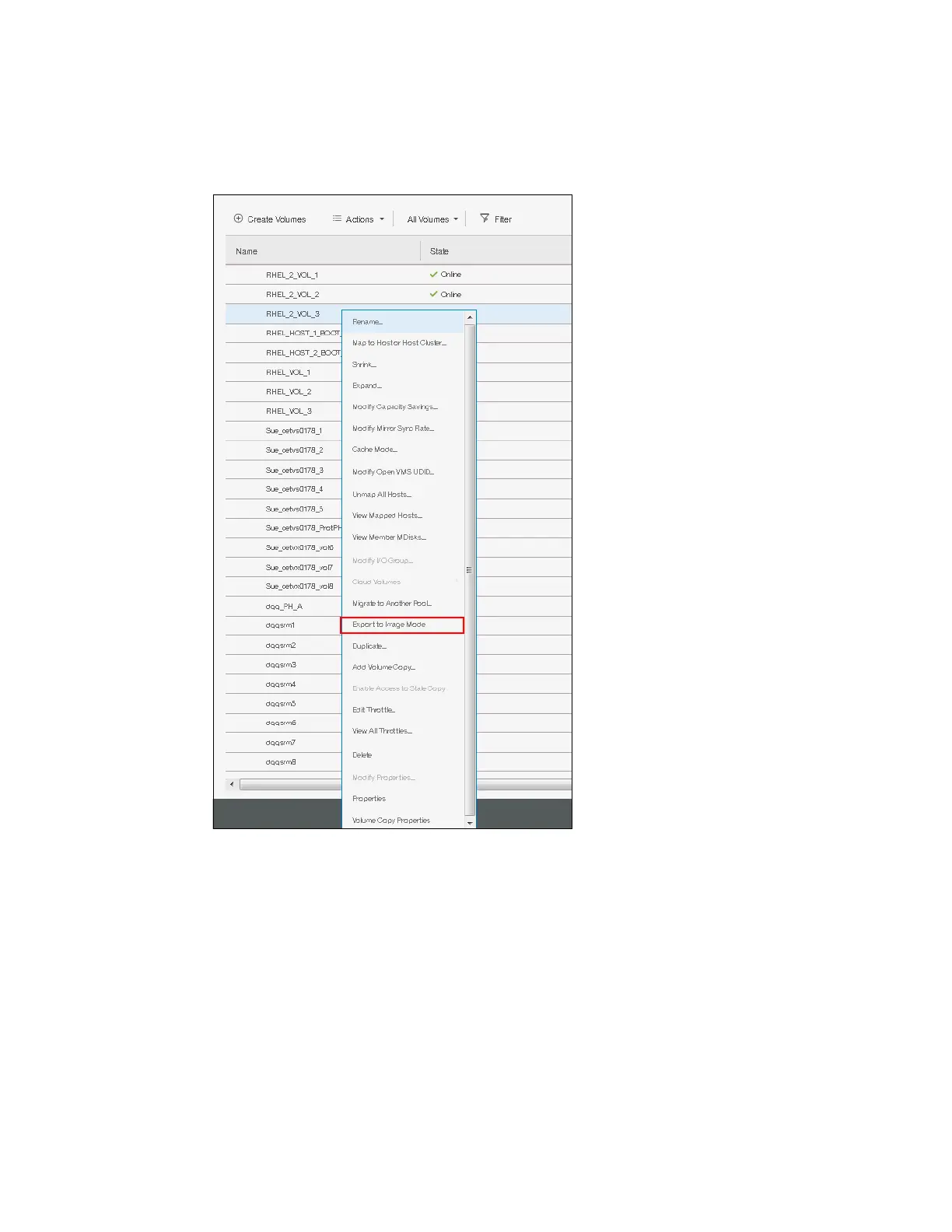

Figure 8-50 Exporting a volume to an image mode
