IBM Storwize V5030 User Manual

Chapter 10. Copy services 521

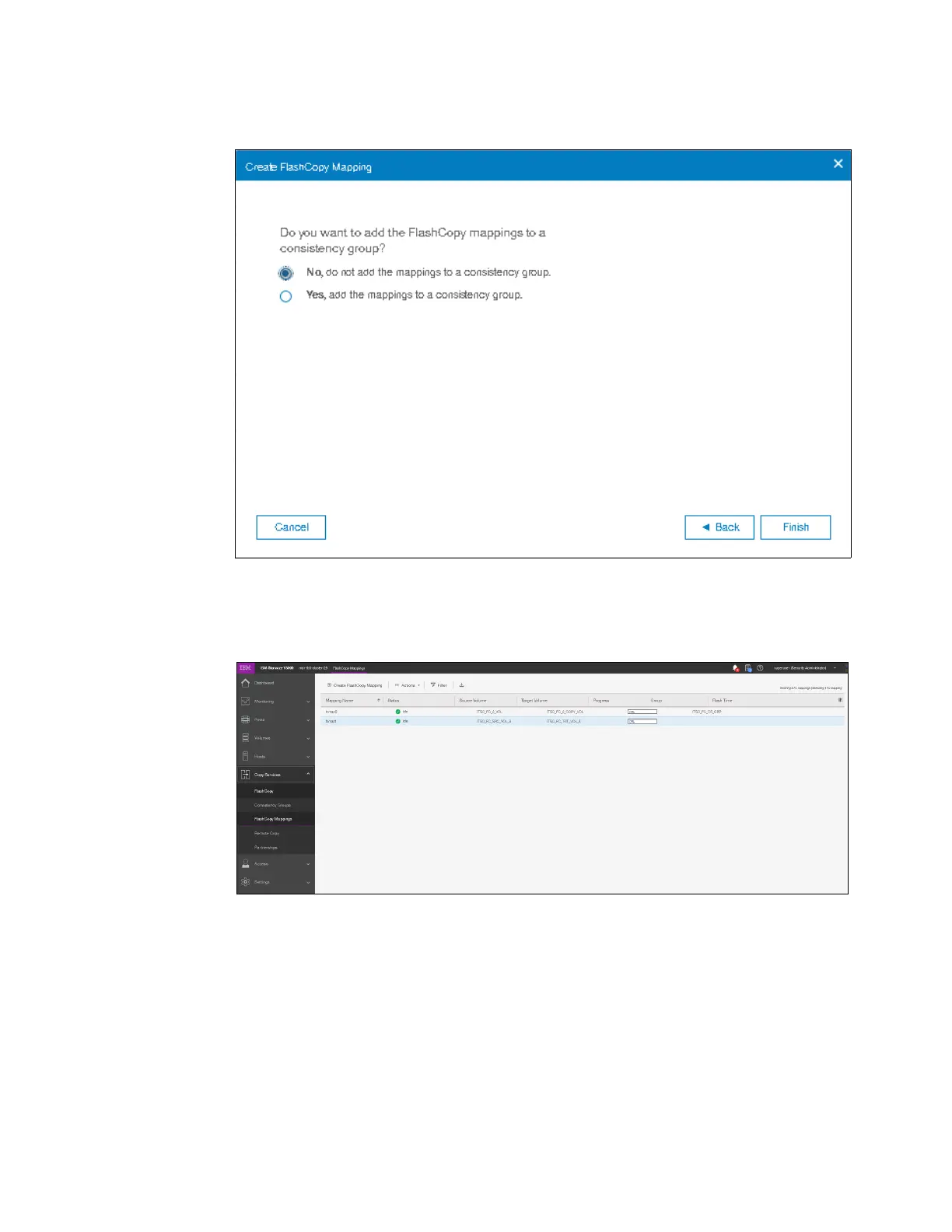

9. Click Finish, as shown in Figure 10-20.
Figure 10-20 Do not add the mappings to a Consistency Group
10.Check the result of this FlashCopy mapping. From the main panel, click Copy Services →
FlashCopy Mappings as shown in Figure 10-21.
Figure 10-21 FlashCopy maps
11.For each FlashCopy mapping relationship that was created, a mapping name is
automatically generated that starts with fcmapX, where X is the next available number. If
needed, you can rename these mappings, as shown in 10.4.11, “Renaming FlashCopy
mapping” on page 543.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
