Chapter 10. Copy services 525

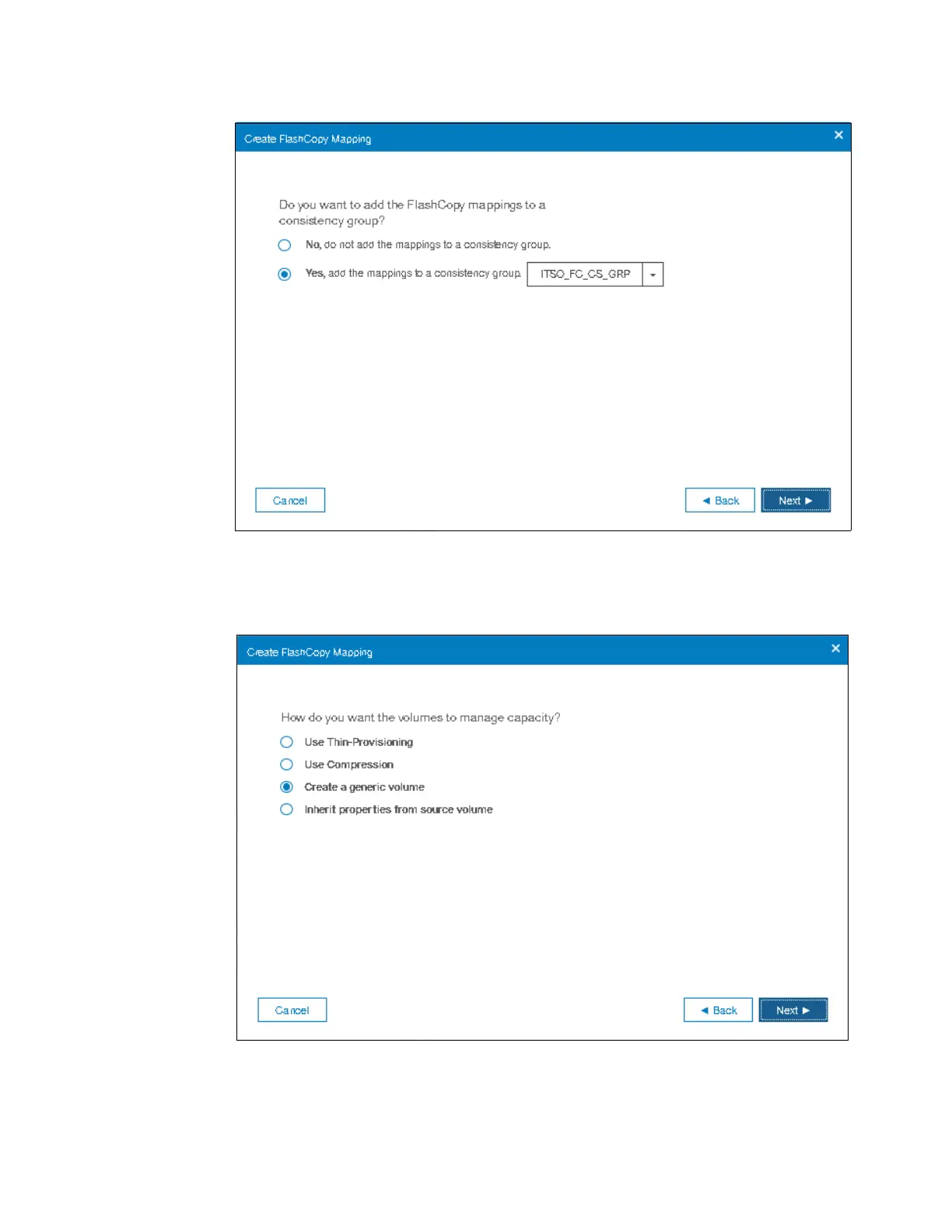

Figure 10-26 Selecting the option to add the mappings to a Consistency Group

6. The next window will show capacity management options about the new target volume as

shown in Figure 10-27.

Figure 10-27 FlashCopy target volume capacity management options
