IBM Storwize V5030 User Manual

526 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

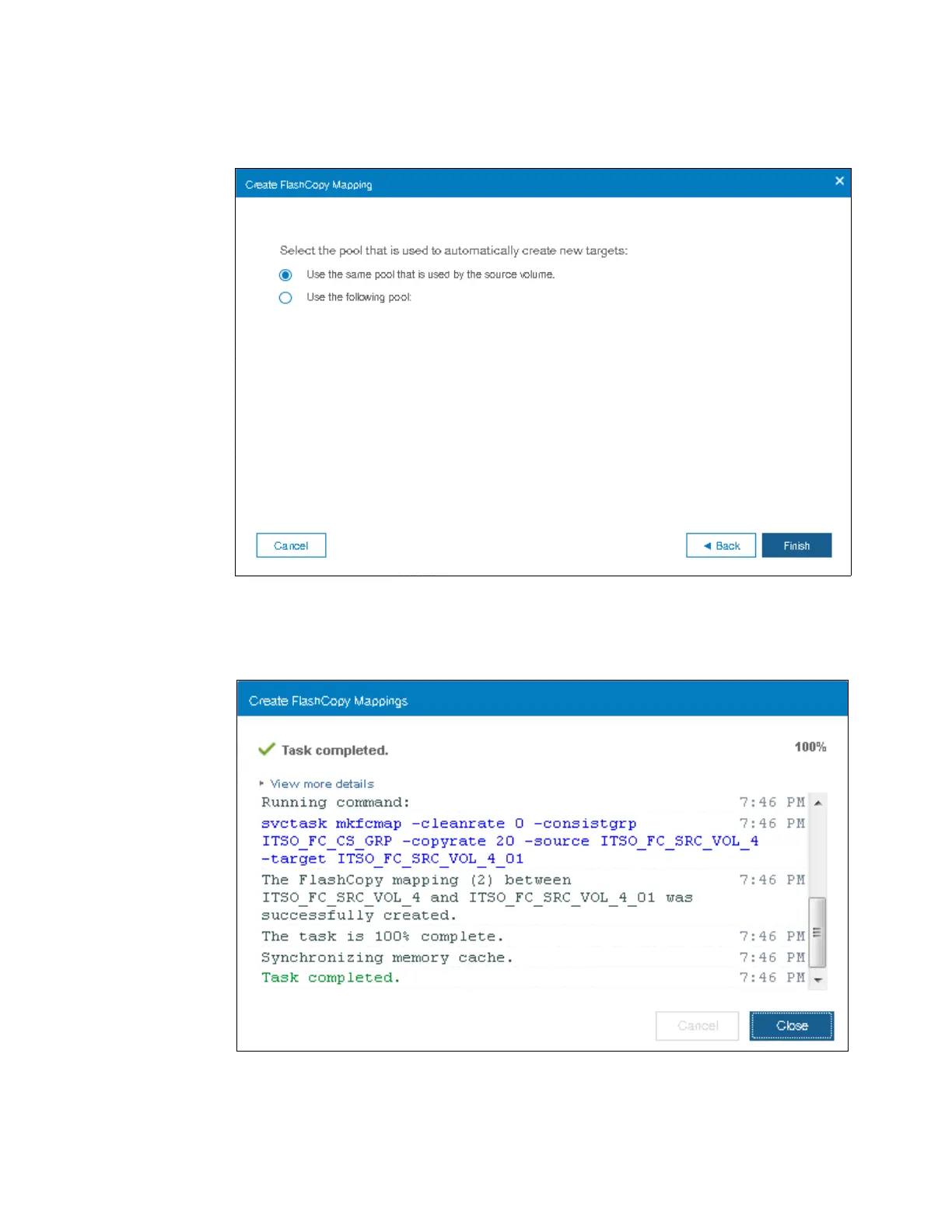

7. Click Next and you will be asked to select the desired storage pool in which the new
FlashCopy target volume needs to be created, as shown in Figure 10-28.
Figure 10-28 Pool selection
8. Click Finish and you will see a window indicating the status of the operation, as shown in
Figure 10-29.
Figure 10-29 FlashCopy map and target volume created

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
