IBM Storwize V5030 User Manual

Chapter 10. Copy services 535

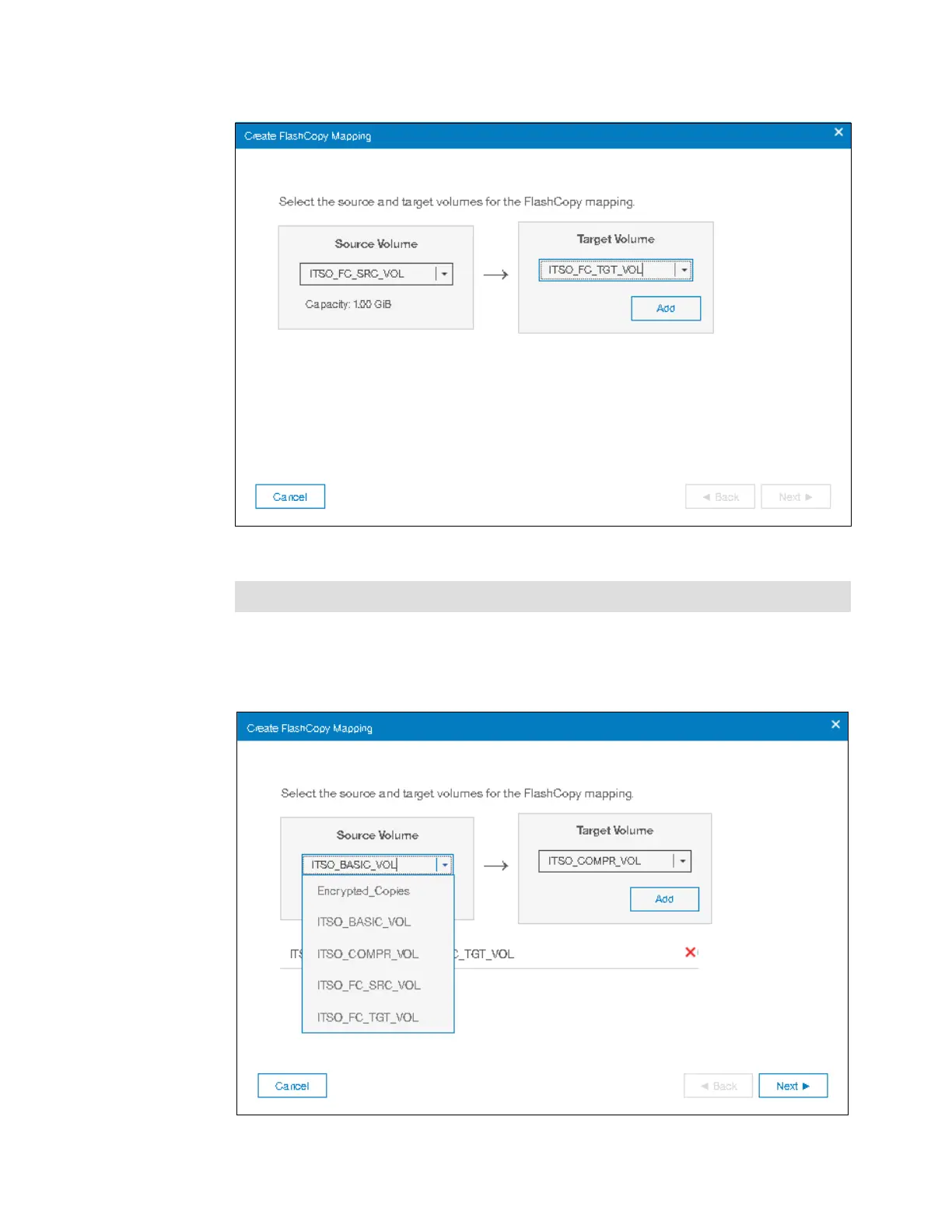

Figure 10-44 Create FlashCopy Mapping window
6. Select a volume in the Source Volume column by using the drop-down list. Then, select a
volume in the Target Volume column by using the drop-down list. Click Add, as shown in
Figure 10-45. Repeat this step to create other relationships.
Figure 10-45 Selecting source and target volumes
Tip: The volumes do not have to be in the same I/O Group or storage pool.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
