Chapter 2. Initial configuration 69

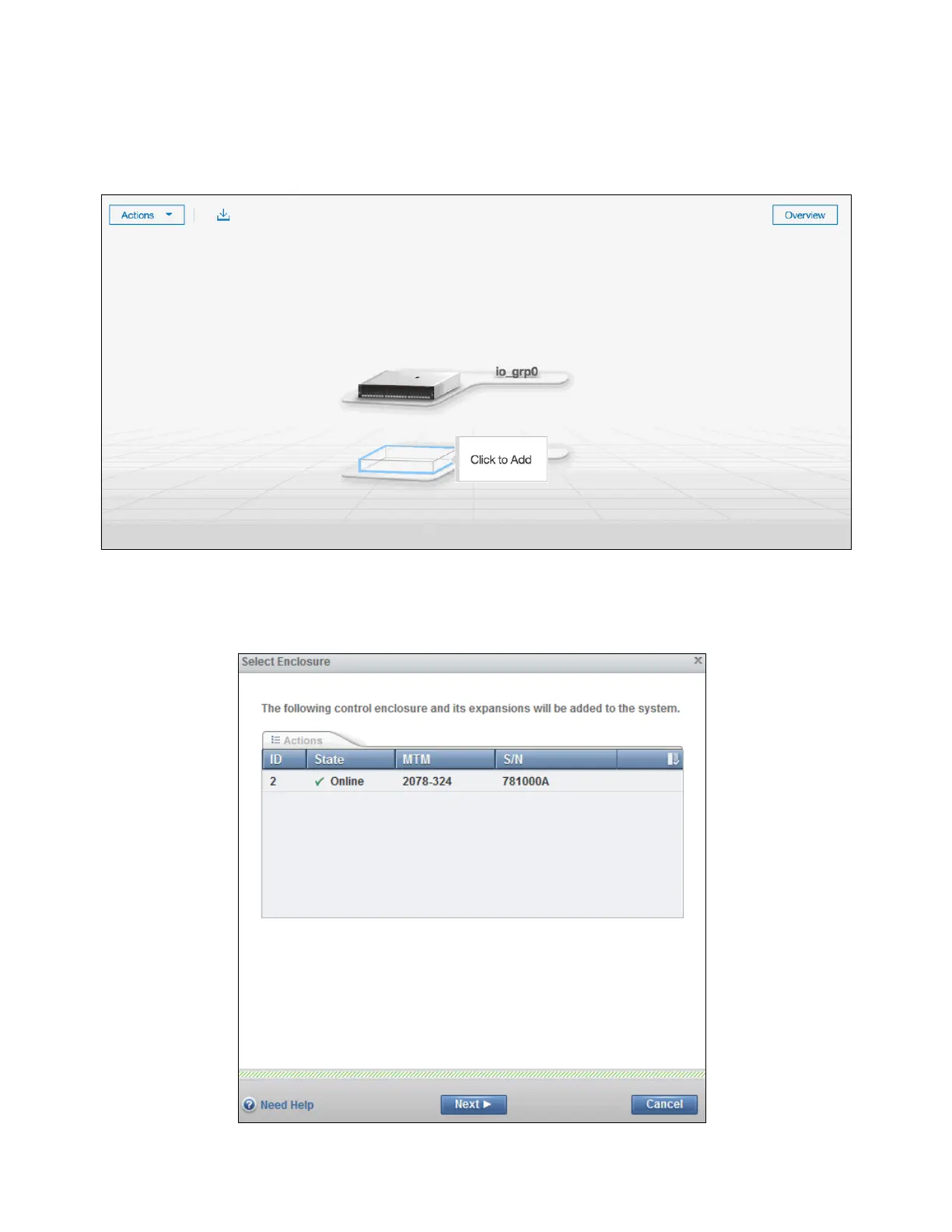

Complete the following steps to use the management GUI to configure the new enclosure:
1. In the main window, click Actions in the upper-left corner and select Add Enclosures.
Alternatively, you can click the available control enclosure as shown in Figure 2-39.
Figure 2-39 Option to add a control enclosure
2. If the control enclosure is configured correctly, the new control enclosure is identified in the
next window, as shown in Figure 2-40.
Figure 2-40 New control enclosure identification

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
