70 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
3. Select the control enclosure and click Actions → Identify to turn on the identify LEDs of
the new enclosure, if required. Otherwise, click Next.

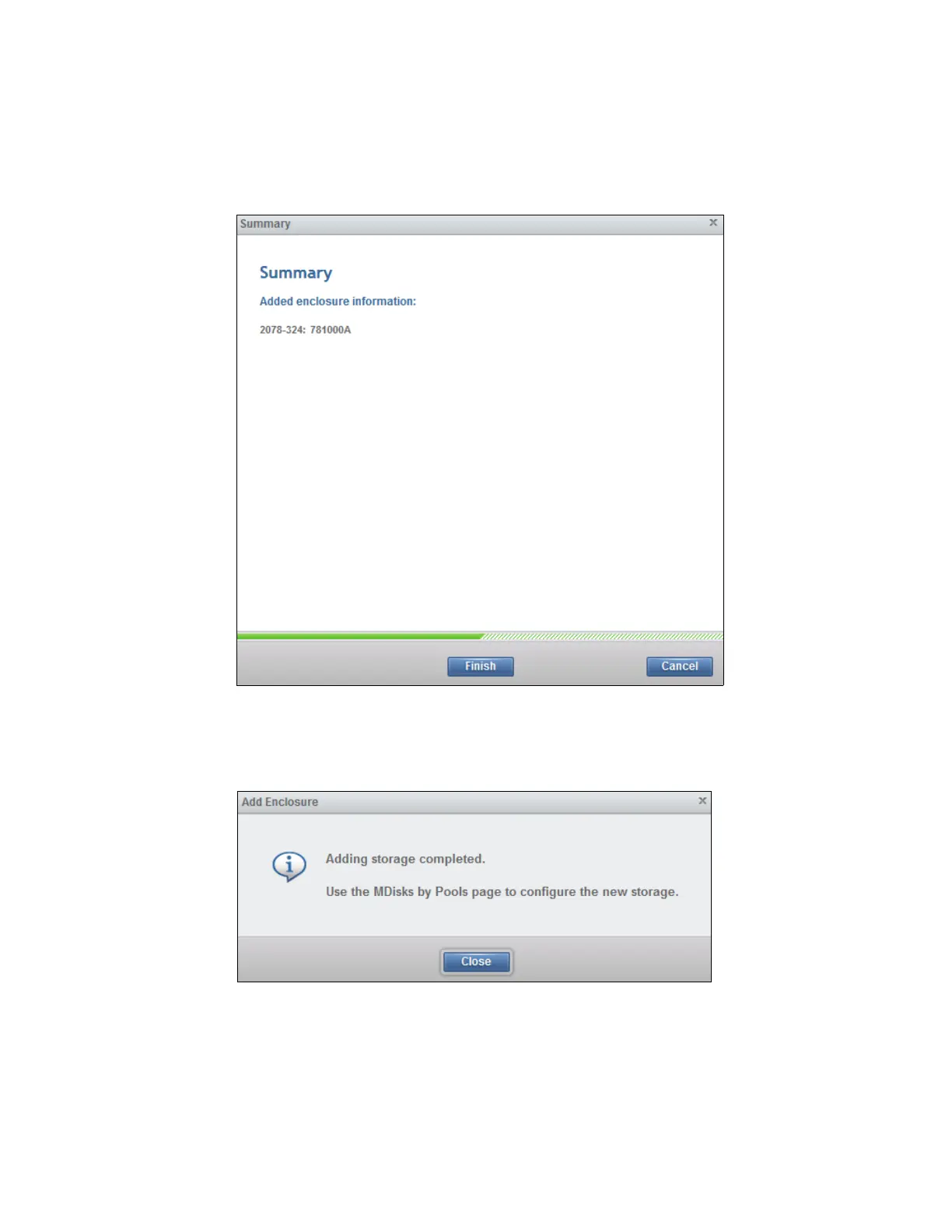

4. The new control enclosure is added to the system as shown in Figure 2-41. Click Finish to
complete the operation.
Figure 2-41 Added enclosure summary
5. When the new enclosure is added, the storage that is provided by the internal drives is
available to use as shown in Figure 2-42.
Figure 2-42 Adding storage completed

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
