Chapter 2. Initial configuration 71
6. After the wizard completes the addition of the new control enclosure, the IBM Storwize
V5000 Gen2 shows the management GUI that contains two I/O groups, as shown in
Figure 2-43.

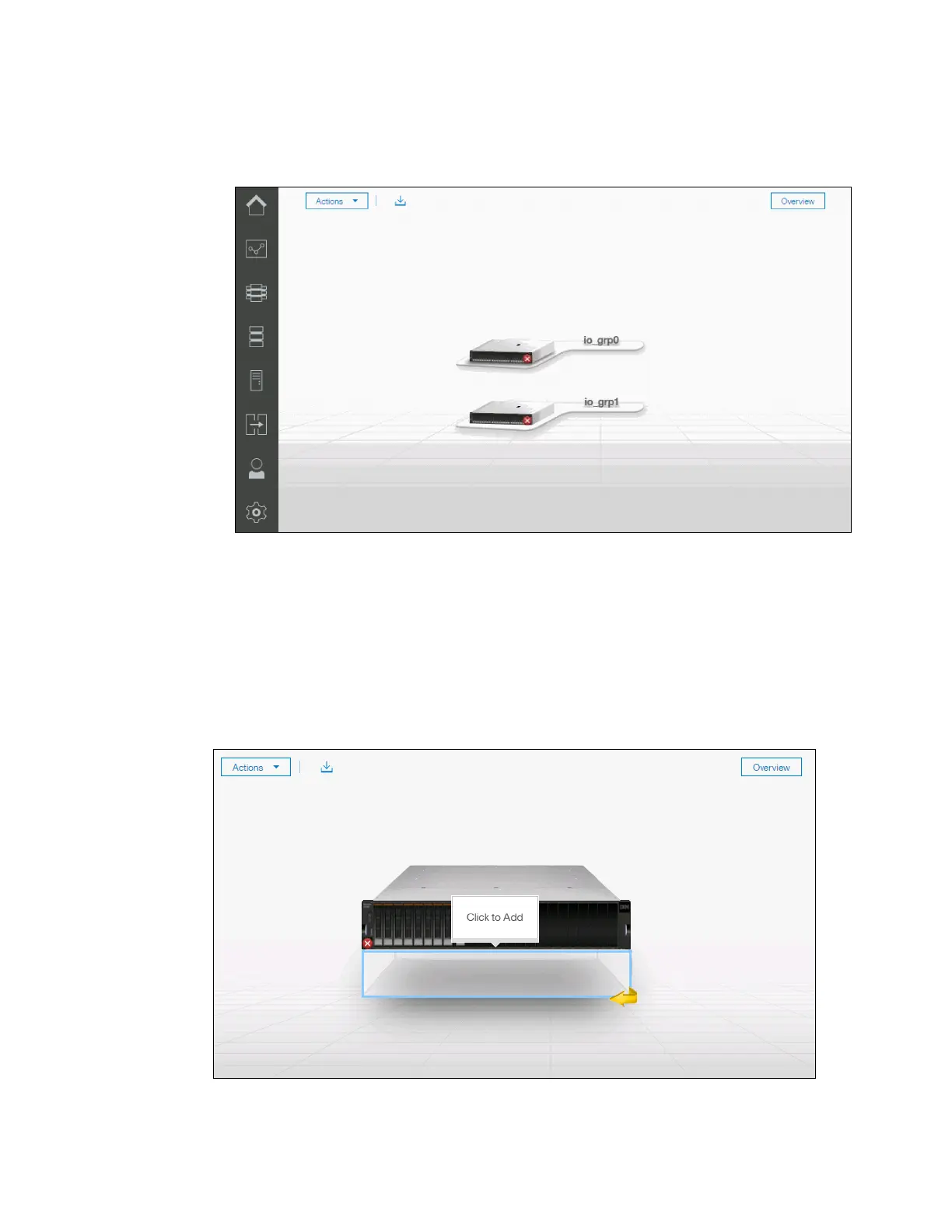

Figure 2-43 IBM Storwize V5000 Gen2 GUI with two I/O groups
Adding an expansion enclosure
Complete the following steps to add an expansion controller:
1. To add an expansion enclosure, change to the Monitoring tab and select System. If no
new hardware is shown, check your cabling to ensure that the new expansion enclosure is
connected correctly and refresh the window.
In the main window, click Actions in the upper-left corner and select Add Enclosures.
Alternatively, you can click the available expansion enclosure as shown in Figure 2-44.
Figure 2-44 Adding an expansion enclosure

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
