Chapter 2. Initial configuration 75

When you access SA by using the <cluster address>/service, the configuration node

canister SA GUI login window opens, as shown in Figure 2-48.

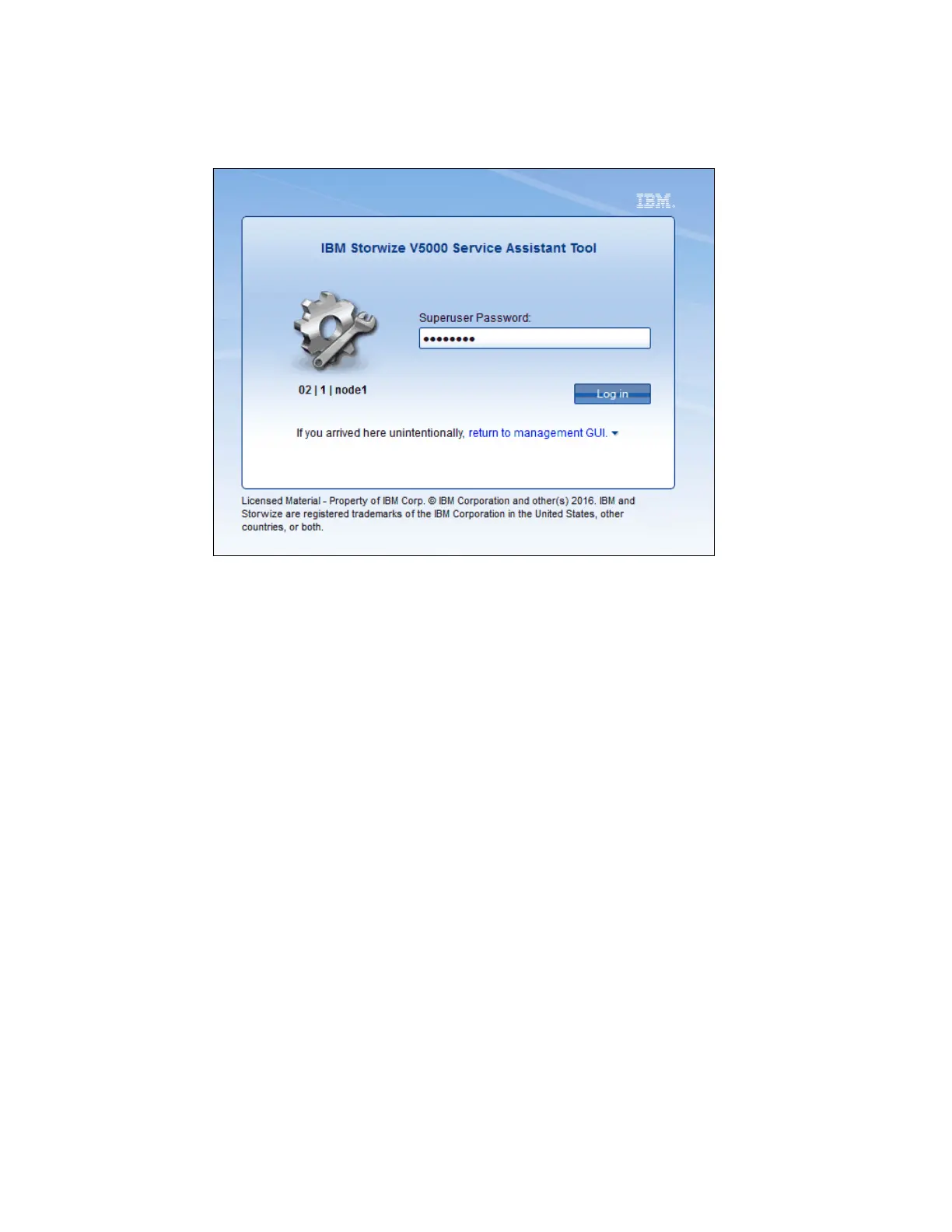

Figure 2-48 Service Assistant Tool login

The SA interface can view status and run service actions on other nodes and the node where

the user is connected.
