10. In the Internal Network Interface pane, verify that the IP address: 172.31.1.1
and the Subnet mask: 255.255.0.0 are displayed.
Note: If different values are displayed in the Internal Network Interface
pane, change them to match the IP address and Subnet mask values provided
in the preceding steps.
11. In the External Network Interface pane, enter the customer-supplied local
area network (LAN) IP address and subnet mask for the TSSC. See
Appendix B, “IP address worksheet,” on page 143.
12. In the System Properties pane, enter the customer-supplied Host Name (the
unique name of the TSSC), Domain Name, DNS1 and DNS2 addresses, and
Default Gateway address.
Note: If necessary, scroll down to access the Default Gateway entry fields and
Save Changes button.
13. Click Save Changes.
When the Save Completed Successfully message displays in the upper-left
corner of the screen, the save is complete.
14. Click the Close this window button in the upper-right corner of the screen.
The Console Configuration Utility menu displays.
15. Click Console Time.
The Console Time and Date screen displays:

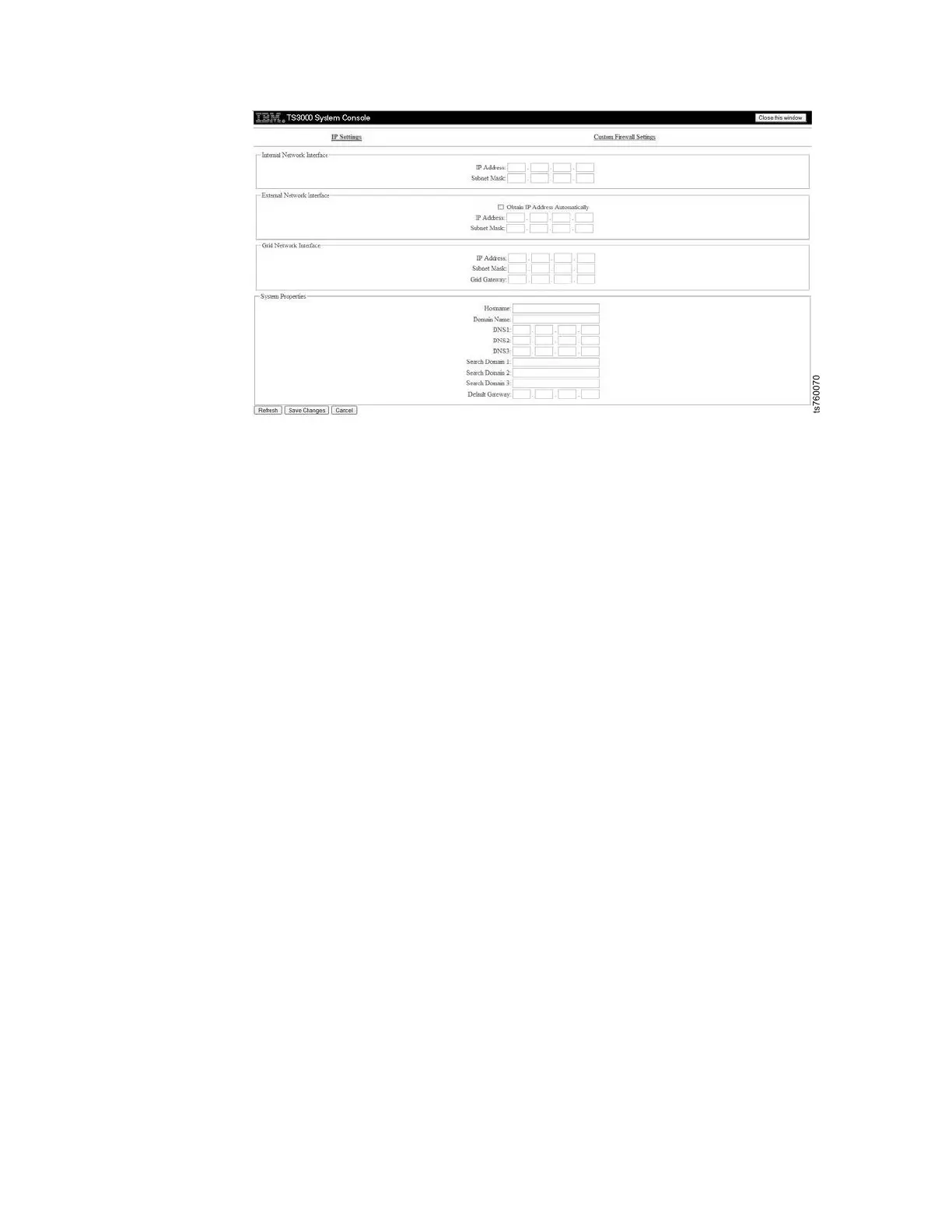

Figure 47. Console Settings screen
82 IBM System Storage TS7650 ProtecTIER Deduplication Appliance: Installation Roadmap Guide
