9.11 Partition Options
LOCATIONS 201 - 208
Partition Zone Allocation
Program these locations to allocate zones to each of the 8 partitions. Lit zone number LEDs
represent the zones allocated to the selected partition. The zones are displayed as 4 pages of 16 zones
each as per Table 24. To scroll to the next page of 16 zones, press the [*] key.
Zones are common, which means that one zone can be allocated to more than one partition.
The keypad start zone in location 241 needs to be programmed for keypads displaying zone numbers
higher than 16.
Each location represents a partition number:
 Location 201 is partition 1
 Location 202 is partition 2
 Location 203 is partition 3
 Location 204 is partition 4
 Location 205 is partition 5
 Location 206 is partition 6
 Location 207 is partition 7
 Location 208 is partition 8

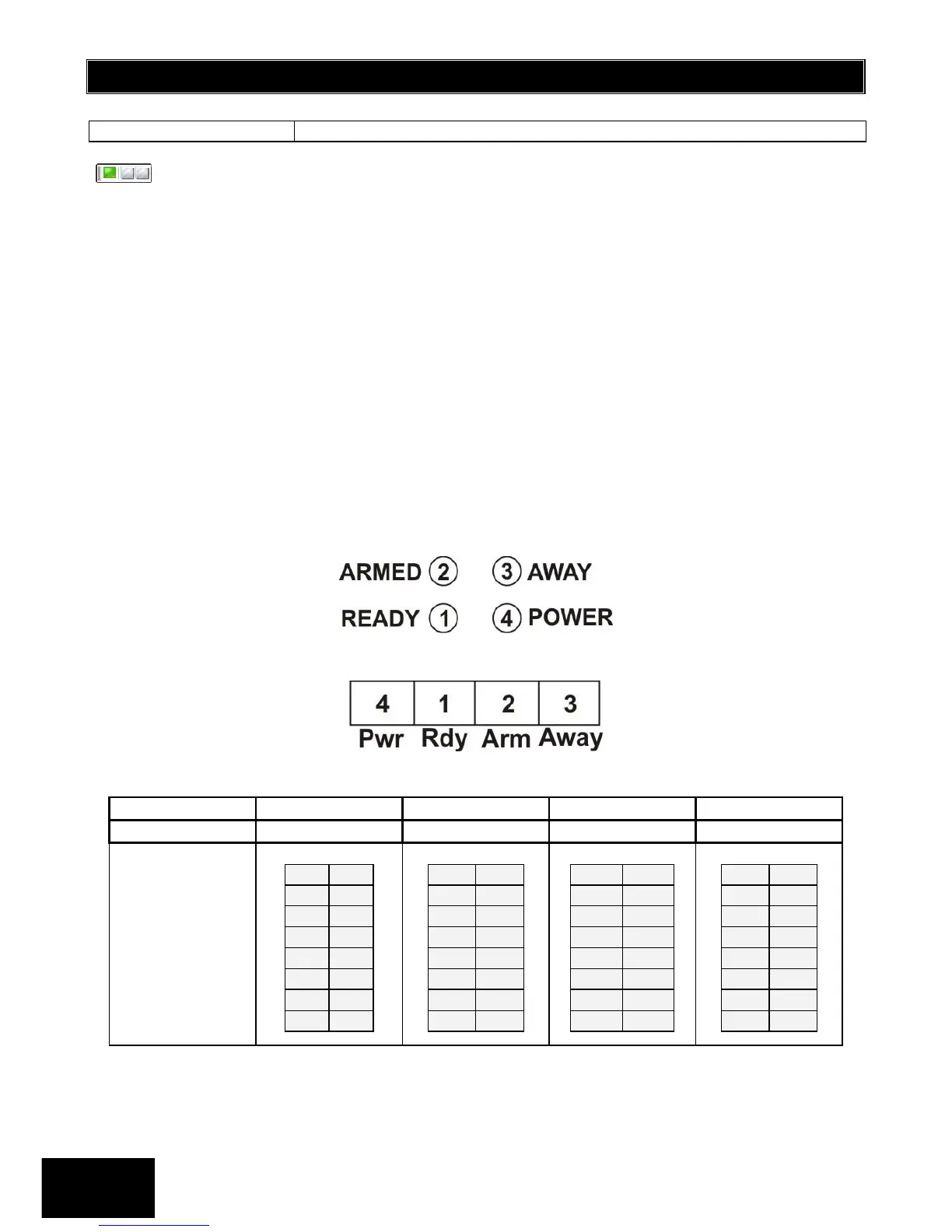

Figure 3 and Figure 4 show the order in which the LEDs display to show you which zones you are viewing
as per Table 24.
Figure 3: Paging Indication on the Classic Keypad
Figure 4: Paging Indication on the Curved Keypad
Table 24: Zones per Partition Page
Page
1
2
3
4
LED
READY
ARM
AWAY
POWER
Zones
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
16
17
25
18
26
19
27
20
28
21
29
22
30
23
31
24
32
33
41
34
42
35
43
36
44
37
45
38
46
39
47
40
48
49
57
50
58
51
59
52
60
53
61
54
62
55
63
56
64
