HD2 Series Inverter Basic Operation Guidelines
-117-

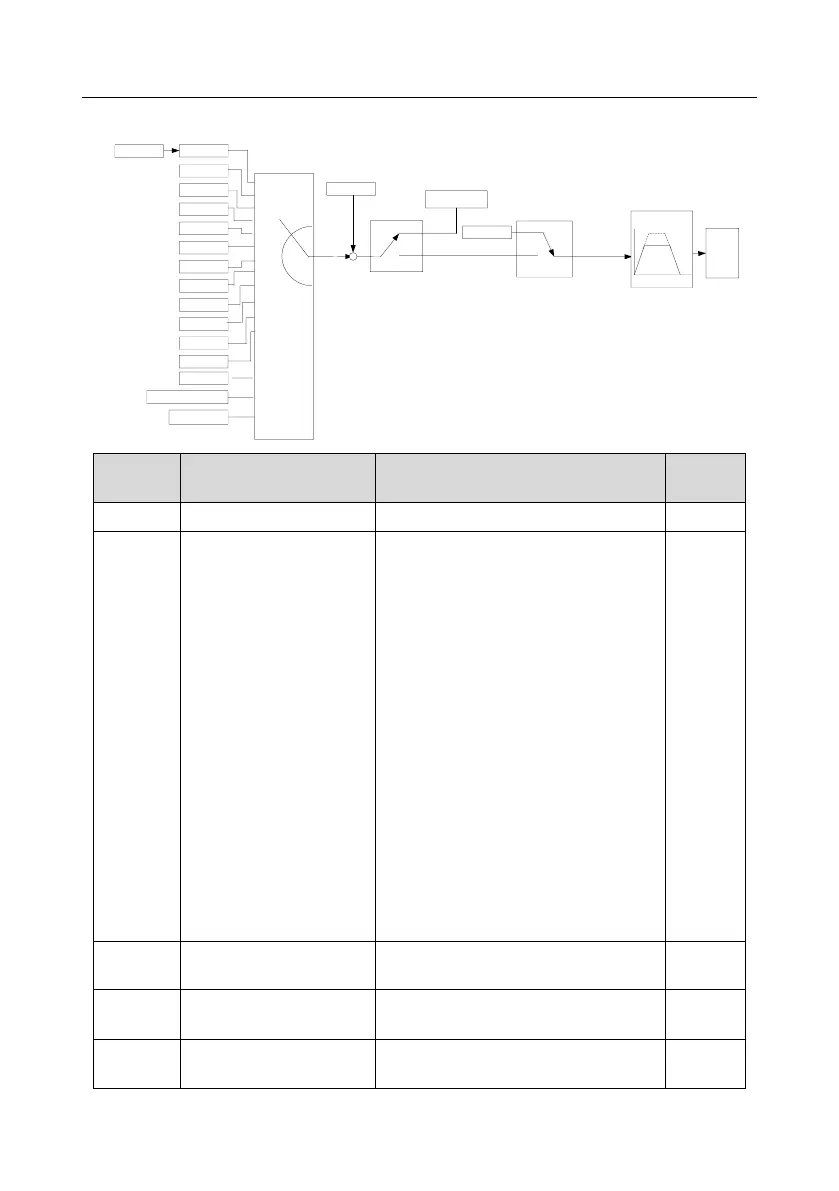

needed like textile and chemical fiber industries. The typical working process is shown as below.
0
1
2
3
4
5
6
7
8
9
10
11
Keypad
AI1
PROFIBUS
MODBUS
PID
Multi-step speed
Simple PLC
HDIA
AI3
AI2
Ethernet
AB pulse string
P00.06
(A frequency command
selection)
Frequency set by
keypad
P00.10
P08.05
Amplitude of wobbling
frequency
*
*
Maintain current
frequency
Set frequency
P00.11 acceleration time 1
P00.12 deceleration time 1
Wobbling
frequency
output
Terminal function 26
wobbling frequency
pause
Terminal function 27
Wobbling frequency reset
Valid
Invalid
Valid
Invalid
HDIB
EtherCat/Profinet
PLC programmable
card
12
13
14
Function
code
Name
Description
Default
value
P00.03
Max. output frequency
P00.03–400.00Hz
50.00Hz
P00.06
A frequency command
selection
0: Keypad
1: AI1
2: AI2
3: AI3
4: High speed pulse HDIA
5: Simple PLC program
6: Multi-step speed running
7: PID control
8: Modbus/Modbus TCP communication
9: PROFIBUS/CANopen/DeviceNet
communication
10: Ethernet communication
11: High speed pulse HDIB
12: Pulse string AB
13: EtherCAT/PROFINET/EtherNet IP
communication
14: Programmable card
0
P00.11
Acceleration time 1
0.0–3600.0s
Depends
on model
P00.12
Deceleration time 1
0.0–3600.0s
Depends
on model
P05.01–
P05.06
Digital input function
selection
26: Wobbling frequency pause (stop at
current frequency)
/
