HD2 Series Inverter Function Parameter List
-196-
Function
code
Name
Description
Default
value
Modify
P09.22–
P09.28
Reserved
0–65536
0
○

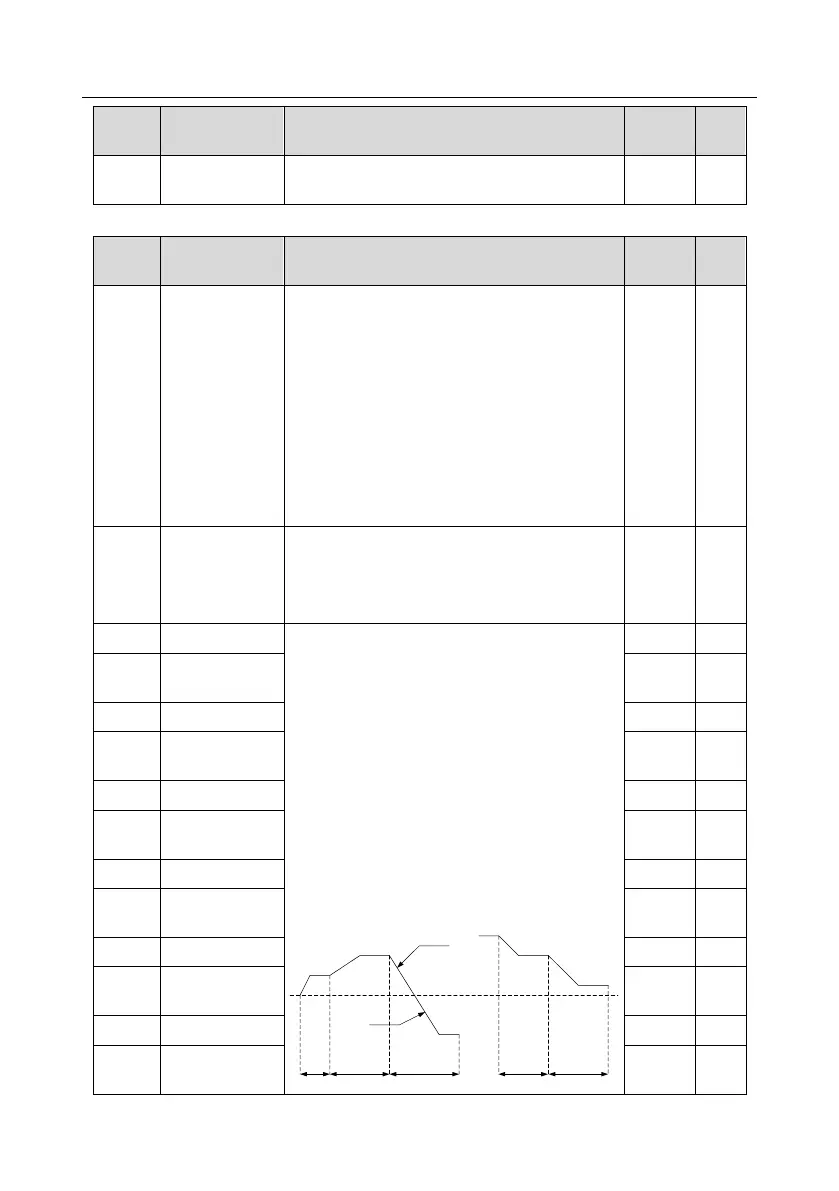

P10––Simple PLC and multi-step speed control
Function
code
Name
Description
Default
value
Modify
P10.00
Simple PLC
mode
0: Stop after running once; the inverter stops
automatically after running for one cycle, and it can
be started only after receiving running command.
1: Keep running in the final value after running
once; The inverter keeps the running frequency
and direction of the last section after a single
cycle.
2: Cyclic running; the inverter enters the next cycle
after completing one cycle until receiving stop
command and stops.
0
○
P10.01
Simple PLC
memory selection
0: No memory after power down
1: Memory after power down; PLC memories its
running stage and running frequency before power
down.
0
○
P10.02
Multi-step speed 0
Frequency setting range for steps from step 0 to
step 15: -300.0–300.0%, 100% corresponds to
Max. output frequency (P00.03).
Running time setting range for steps from step 0 to
step 15: 0.0–6553.5s (min). The time unit is
specified by P10.37.
When simple PLC operation is selected, you must
set P10.02–P10.33 to determine the running
frequency and running time of each step.
Note: The symbol of multi-step speed determines
the running direction of simple PLC, and the
negative value means reverse running.
P10.02
P10.04
P10.06
P10.32
P10.30
P10.28
Deceleration time
(two sections)
Acceleration time
(two sections)
P10.03 P10.05 P10.07 P10.31 P10.33
0.0%
○
P10.03
Running time of
step 0
0.0s(min)
○
P10.04
Multi-step speed 1
0.0%
○
P10.05
Running time of
step 1
0.0s(min)
○
P10.06
Multi-step speed 2
0.0%
○
P10.07
Running time of
step 2
0.0s(min)
○
P10.08
Multi-step speed 3
0.0%
○
P10.09
Running time of
step 3
0.0s(min)
○
P10.10
Multi-step speed 4
0.0%
○
P10.11
Running time of
step 4
0.0s(min)
○
P10.12
Multi-step speed 5
0.0%
○
P10.13
Running time of
step 5
0.0s(min)
○
