HD2 Series Inverter Product Overview
-11-

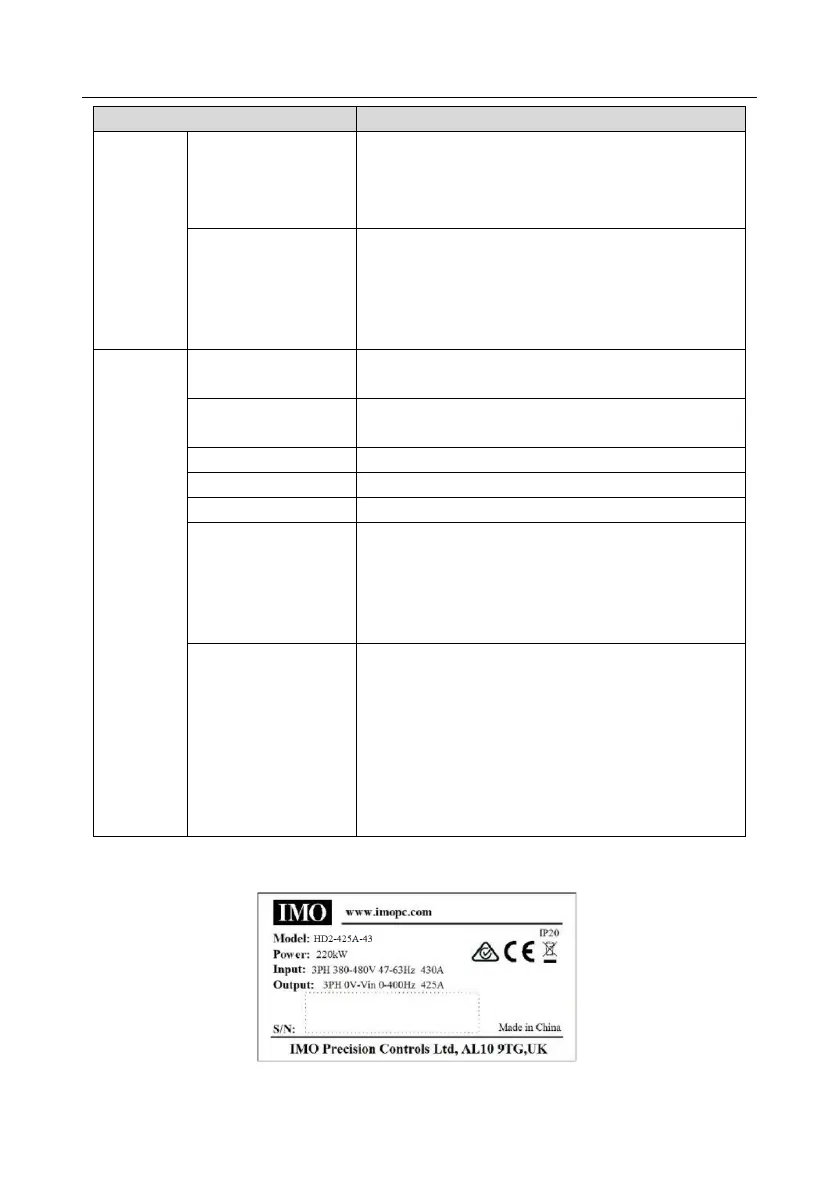

Function description
Specification
Relay output
Two programmable relay outputs
RO1A: NO, RO1B NC, RO1C: common
RO2A: NO, RO2B: NC, RO2C: common
Contact capacity: 3A/AC250V, 1A/DC30V
Extension interface
Three extension interfaces: SLOT1, SLOT2, and SLOT3
(only on the control boards of 7.5kW and higher inverter
models)
Expandable PG card, programmable expansion card,
communication card, I/O card, and so on
Others
Installation mode
Supports wall mounting, floor mounting and flange
mounting.
Temperature of running
environment
-10–50°C; Derating is required when the ambient
temperature exceeds 40°C.
IP rating
IP20
Pollution degree
Degree 2
Cooling mode
Forced air cooling
Braking unit
For 380V 37kW and lower: standard part, already built in
For 380V 45kW–110kW (inclusive): optional part, built-in
only
For all 660V models: optional part, externally connected
only
EMC filter
The conductivity and transmission of all 380V inverter
models can meet the IEC61800-3 C3 requirements.
Optional external filters can be used to meet the
IEC61800-3 C2 requirements.
Note: Comply with the EMC regulations in the appendix
in the manual and select the motor and motor cables
according to the technical requirements in the appendix in
the manual.
3.4 Product nameplate
Figure 3-4 Product nameplate
