HD2 Series Inverter Expansion Cards
-335-
Grounding position of the
shielded cable
Grounding position of
the shielded cable

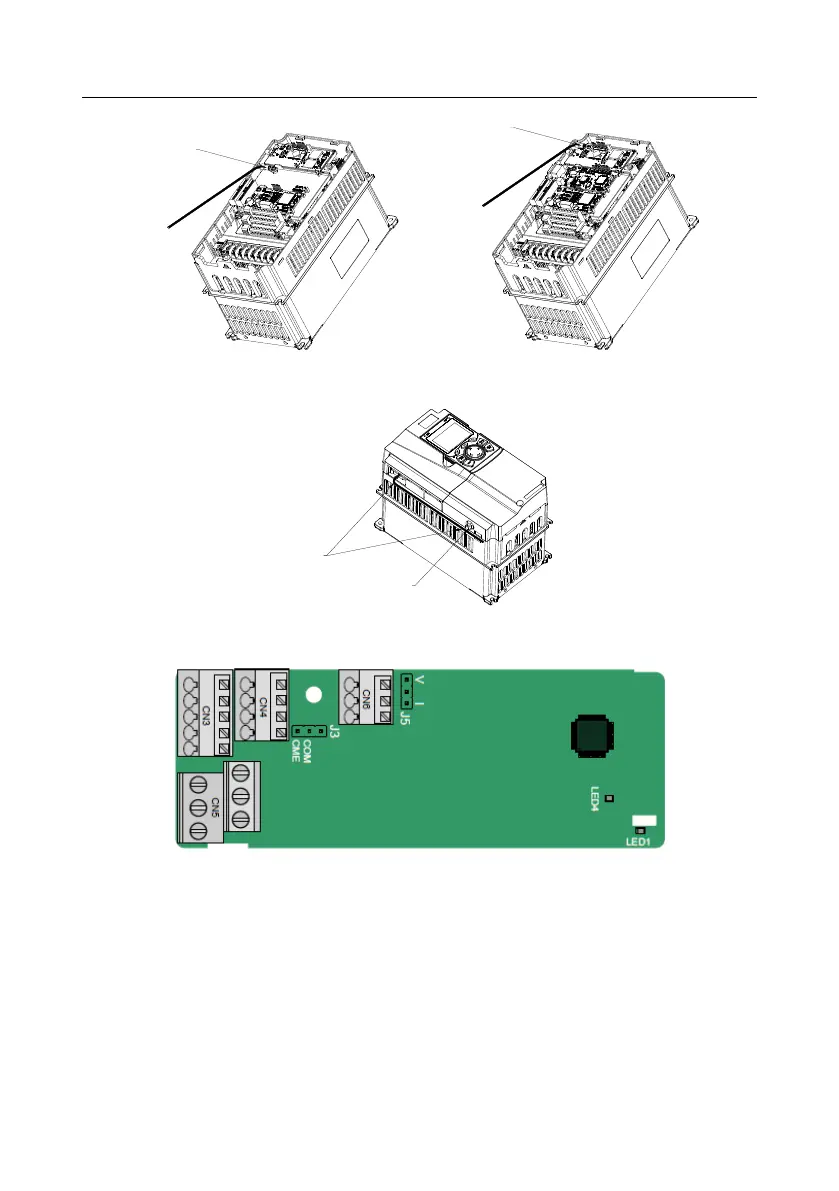

Figure A-4 Expansion card grounding diagram
2. Wire an expansion card as follows:
EC wiring
EC wire binding position
Figure A-5 Expansion card wiring
A.4 IO expansion card (HD2-E-IO)
CME and COM are shorted through J3 before delivery, and J5 is the jumper for selecting the output
type (voltage or current) of AO2.
The terminals are arranged as follows:
