HD2 Series Inverter Installation Guidelines
-17-
4.2.3 Installation mode
There are three kinds of installation modes based on different inverter dimensions.
1. Wall-mounting: suitable for 380V 315kW and lower, and 660V 355kW and lower
2. Flange-mounting: suitable for 380V 200kW and lower, and 660V 220kW and lower
3. Floor-mounting: suitable for 380V 220–3000kW, and 660V 250–3000kW

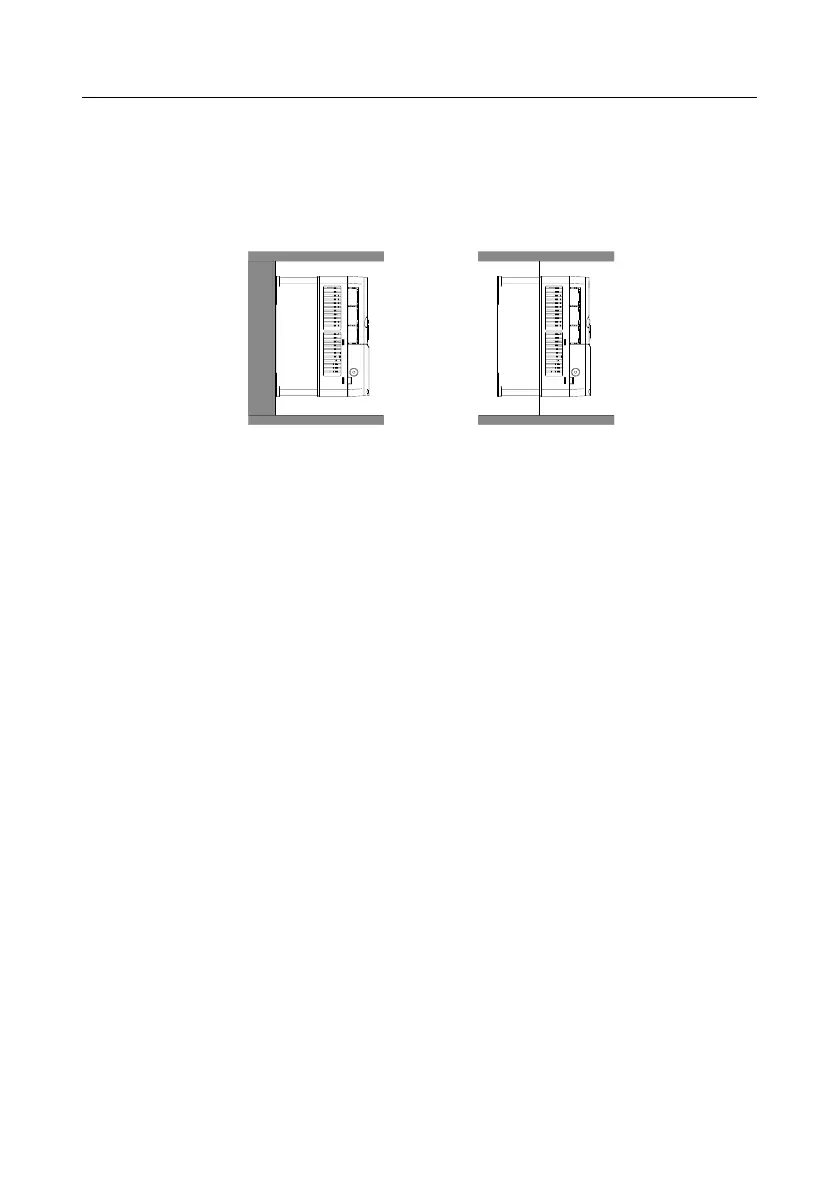

Figure 4-2 Installation mode
(1) Mark the position of the Mounting hole. See appendix for the position of Mounting hole.
(2) Mount the screws or bolts onto the designated position.
(3) Put the inverter on the wall.
(4) Tighten the fixing screws on the wall.
Note:
⚫ The flange-mounting plate is a must for the 380V 1.5–110kW inverter models that adopt
flange-mounting mode, while the 380V 132–200kW and 660V 22–220kW models need no
flange-mounting plate.
⚫ The optional installation base is available for the 380V 220–315kW and 660V 250–355kW
inverter models. The base can hold an input AC reactor (or DC reactor) and an output AC
reactor.
