HD2 Series Inverter Installation Guidelines
-18-

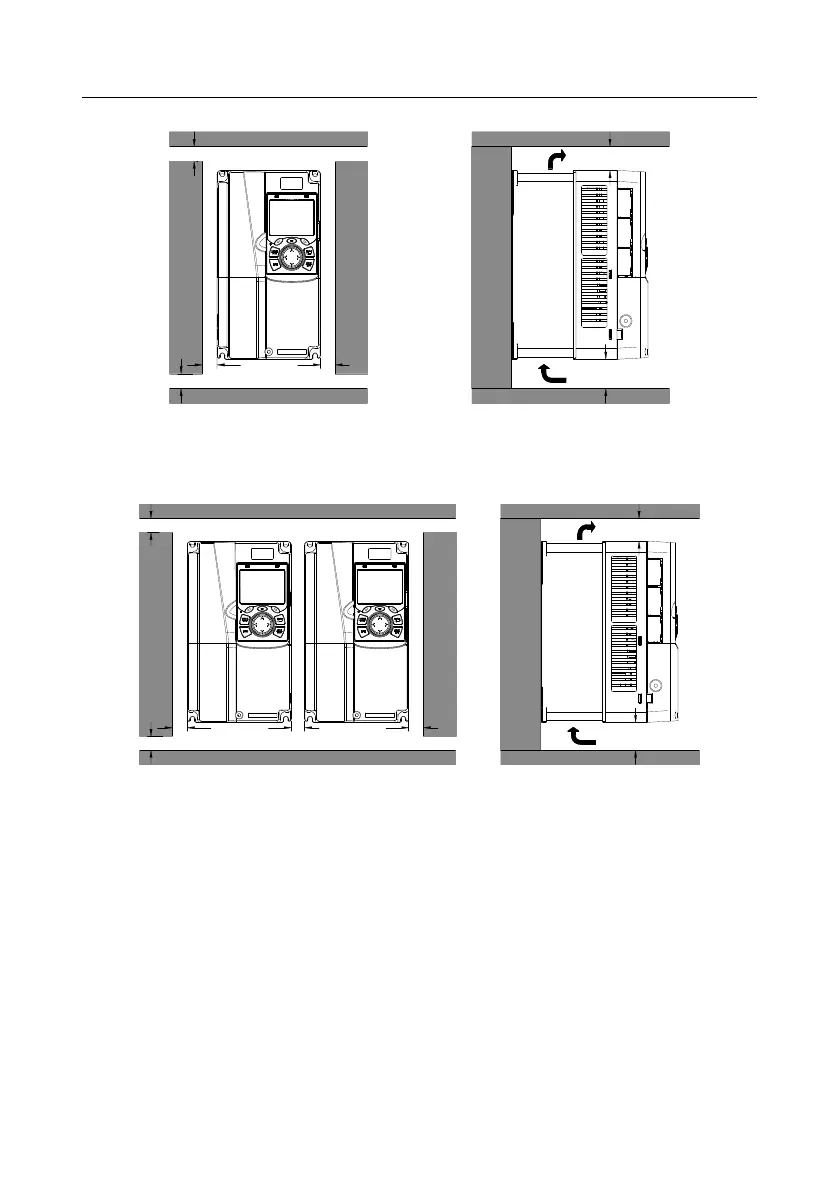

4.2.4 Single-unit installation
Cold air
Hot air
C
C
A
B
A
B
Figure 4-3 Single-unit installation
Note: The min. dimension of B and C is 100mm.
4.2.5 Multiple-unit installation
Hot air
Cold air
C
C
A
A
B B
D
Figure 4-4 Parallel installation
Note:
⚫ When you install inverters in different sizes, align the top of each inverter before installation for
the convenience of future maintenance.
⚫ For clearances B, D and C, each must be at least 100mm.
