A.7.2 PROFIBUS-DP communication card (HD2-E-PDP)

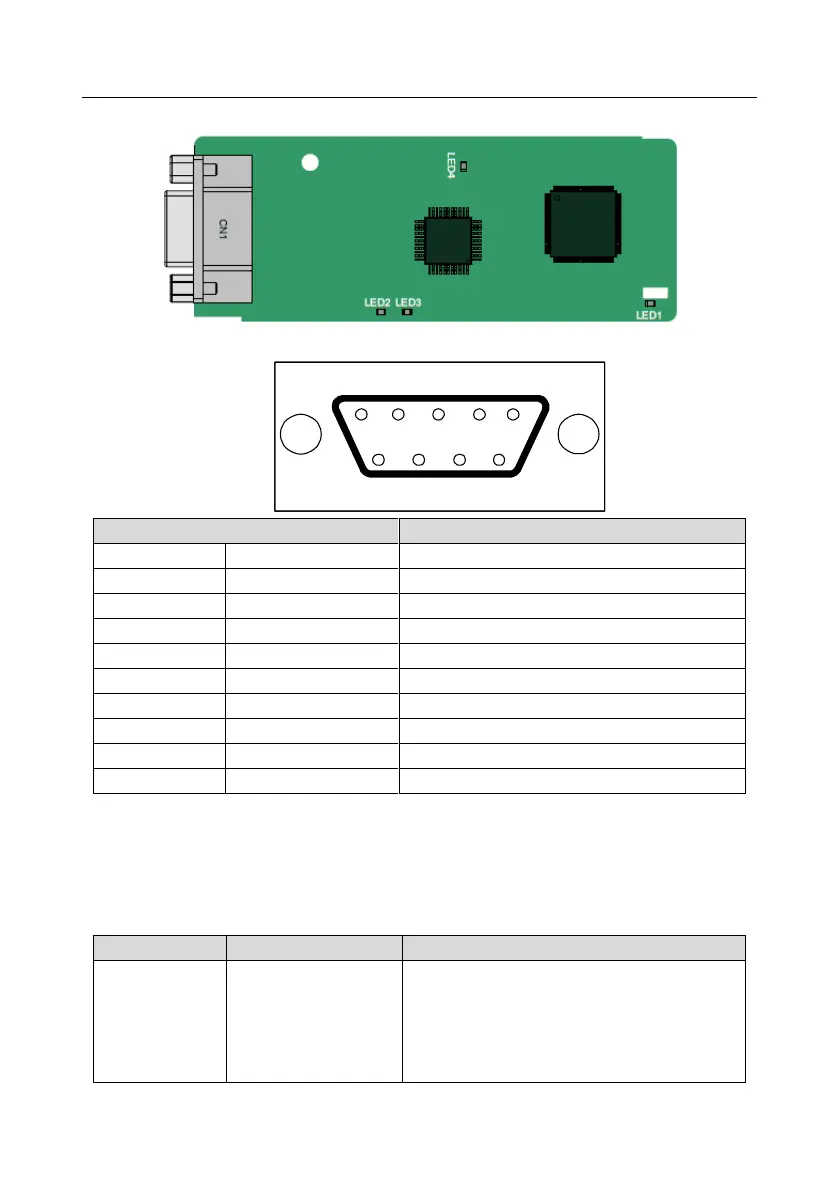

CN1 is a 9-pin D-type connector, as shown in the following figure.
5
4 3
2 1
9 8 7 6
Connector pin
Description
1
-
Unused
2
-
Unused
3
B-Line
Data+ (twisted pair 1)
4
RTS
Request transmission
5
GND_BUS
Isolation ground
6
+5V BUS
Isolated power supply of 5 V DC
7
-
Unused
8
A-Line
Data- (twisted pair 2)
9
-
Unused
Housing
SHLD
PROFIBUS cable shielding line
+5V and GND_BUS are bus terminators. Some devices, such as the optical transceiver (RS485),
may need to obtain power through these pins.
On some devices, the transmission and receiving directions are determined by RTS. In normal
applications, only A-Line, B-Line, and the shield layer need to be used.
Indicator definition
Indicator
Name
Description
LED1
State indicator
On: The expansion card is establishing a
connection with the control board.
Blinking periodically: The expansion card is
properly connected to the control board (the
period is 1s, on for 0.5s, and off for the other
