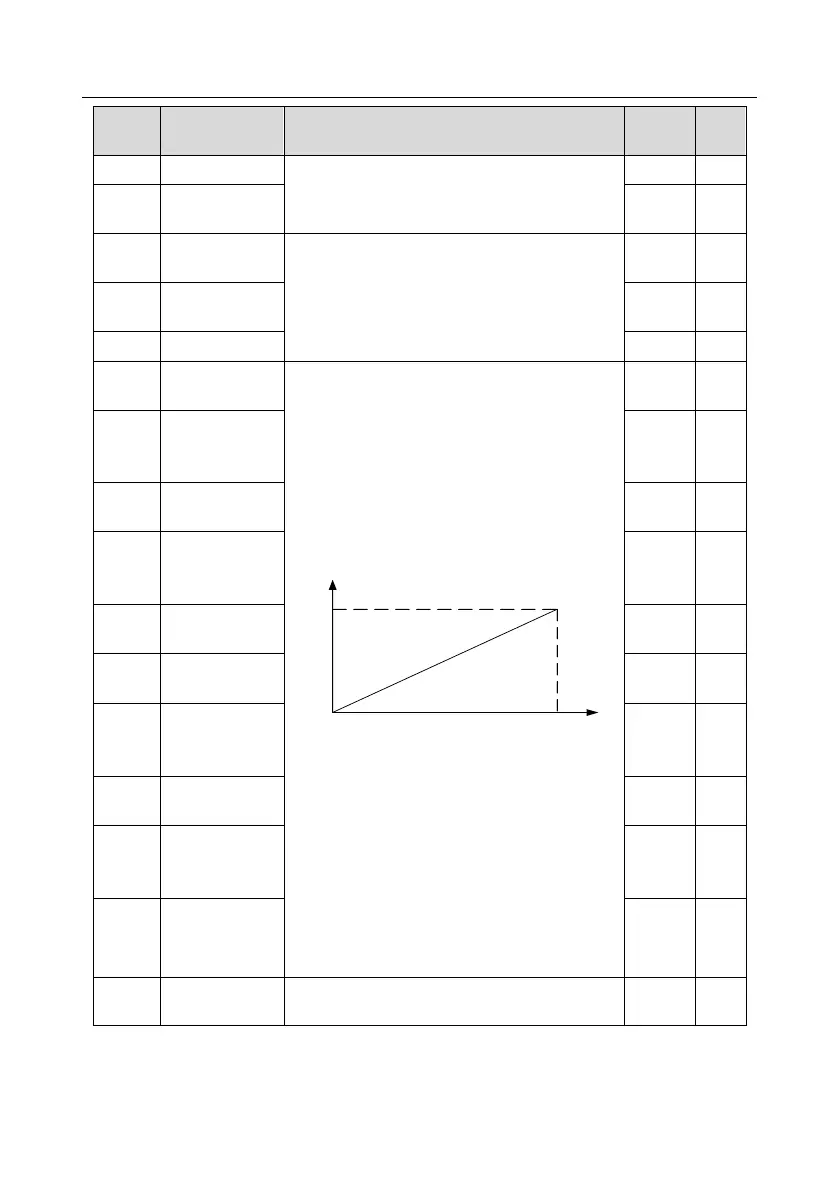

HD2 Series Inverter Function Parameter List
-260-
Function
code
Name
Description
Default
value
Modify
switch-on delay
P26.34
Relay RO10
switch-off delay
0.000s
○
P26.35
AO2 output
selection
The same with P06.14
0
○
P26.36
AO3 output
selection
0
○
P26.37
Reserved
0
○
P26.38
Lower limit of
AO2 output
Above function codes define the relation between
output value and analog output. When the output
value exceeds the set max./min. output range, the
upper/low limit of output will be adopted during
calculation.
When analog output is current output, 1mA
corresponds to 0.5V voltage. In different
applications, 100% of output value corresponds to
different analog outputs.
10V (20mA)
0.0% 100.0%
AO
Setting range of P26.38: -300.0%–P26.40
Setting range of P26.39: 0.00V–10.00V
Setting range of P26.40: P26.38–100.0%
Setting range of P26.41: 0.00V–10.00V
Setting range of P26.42: 0.000s–10.000s
Setting range of P26.43: -300.0%–P26.45
Setting range of P26.44: 0.00V–10.00V
Setting range of P26.45: P26.43–300.0%
Setting range of P26.46: 0.00V–10.00V
Setting range of P26.47: 0.000s–10.000s
0.0%
○
P26.39
Corresponding
AO2 output of
lower limit
0.00V
○
P26.40
Upper limit of
AO2 output
100.0%
○
P26.41
Corresponding
AO2 output of
upper limit
10.00V
○
P26.42
AO2 output filter
time
0.000s
○
P26.43
Lower limit of
AO3 output
0.0%
○
P26.44
Corresponding
AO3 output of
lower limit
0.00V
○
P26.45
Upper limit of
AO3 output
100.0%
○
P26.46
Corresponding
AO3 output of
upper limit
10.00V
○
P26.47
AO3 output filter
time
0.000s
○
P26.48–
P26.52
Reserved
0–65535
0
○
