HD2 Series Inverter Basic Operation Guidelines
-34-

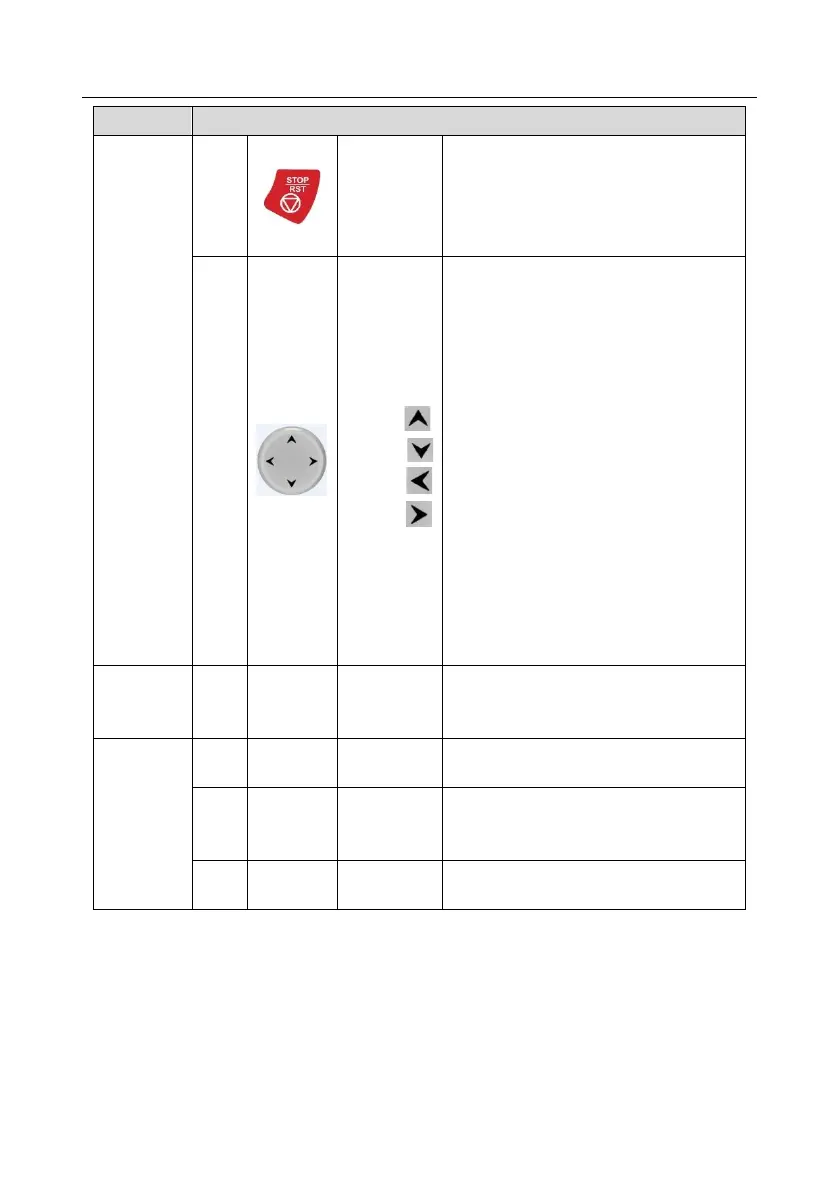

Item
Instruction
(10)
Stop/
Reset key
During running state, press the Stop/Reset
key can stop running or autotuning; this key
is limited by P07.04. During fault alarm state,
all the control modes can be reset by this
key.
(11)
Direction key
UP:
DOWN:
LEFT:
RIGHT:
UP: The function of UP key varies with
interfaces, such as shifting up the displayed
item, shifting up the selected item, and
changing digits.
DOWN: The function of DOWN key varies
with interfaces, such as shifting down the
displayed item, shifting down the selected
item, changing digits.
LEFT: The function of LEFT key varies with
interfaces, such as switch over the
monitoring interface, such as shifting the
cursor leftward, exiting current menu, and
returning to previous menu.
RIGHT: The function of RIGHT key varies
with interfaces, such as switch over the
monitoring interface, shifting the cursor
rightward, enter the next menu etc.
Display area
(12)
LCD
Display screen
240×160 dot-matrix LCD; display three
monitoring parameters or six sub-menu
items simultaneously
Others
(13)
RJ45
interface
RJ45 interface
RJ45 interface is used to connect to the
inverter.
(14)
Battery
cover
Clock battery
cover
Remove this cover when replacing or
installing clock battery, and close the cover
after battery is installed
(15)
USB
terminal
Mini USB
terminal
Mini USB terminal is used to connect to the
USB flash drive through an adapter.
The LCD has different display areas, which displays different contents under different interfaces. The
figure below is the main interface of stops state.
