RTC Mode 1 (Daily)
Th

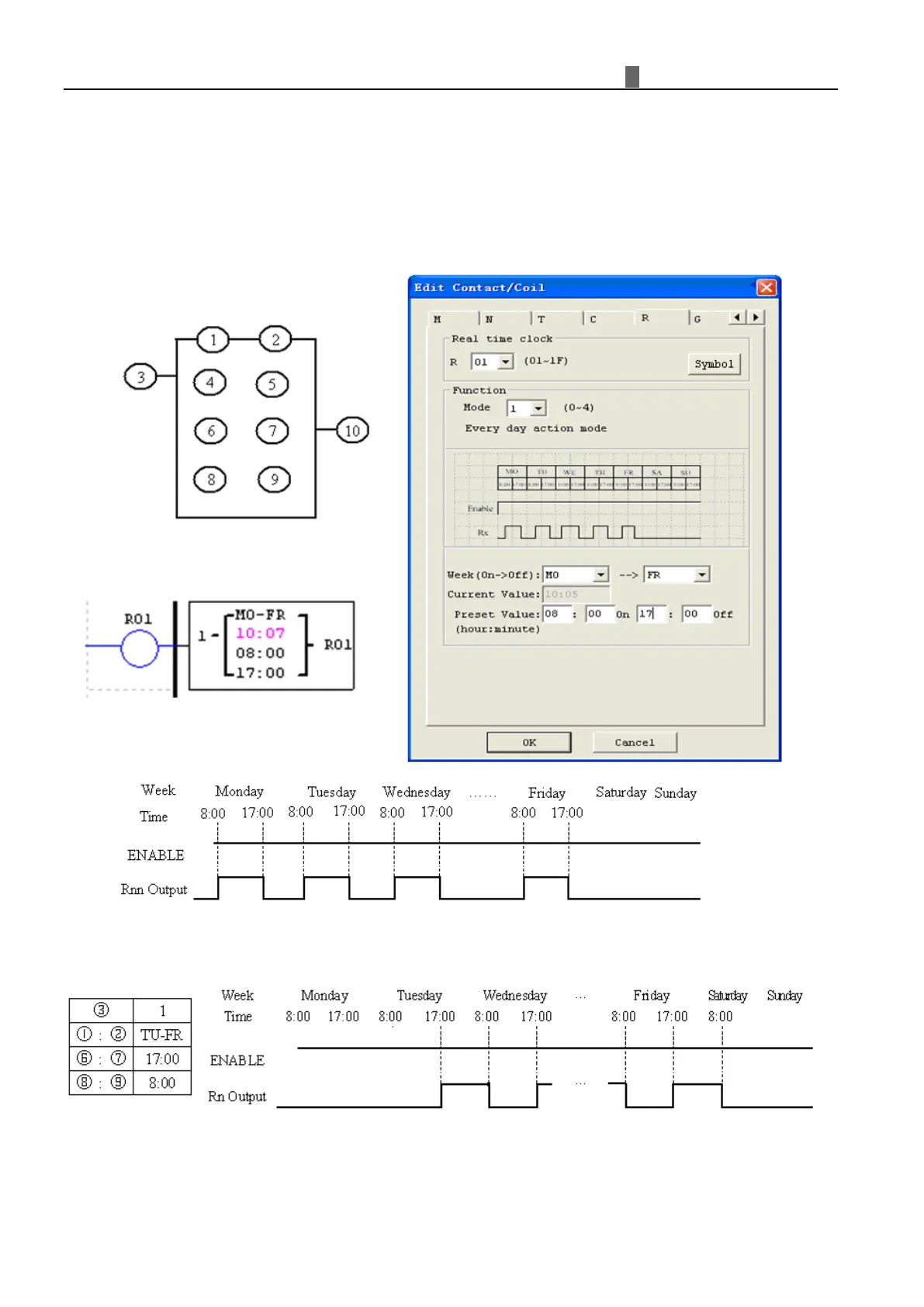

e Daily Mode 1 allows the RTC coil acting based on a fixed time across a defined set of days per week. The
configuration dialog below (example 1) allows setting the workdays per week (i.e., Mon-Fri) and the work hours per
day. RTC coil/contact turns on in the work-hour of the workday.
Exa
mple 1:
Exa
mple 2:
