Chapter 11: Ethernet function Instruction 5
Network inputs and outputs function setting and Application
iSmart provides network digital inputs/outputs and network analog inputs/outputs.
The master iSmart can communicate with the slave iSmart using the network inputs and outputs.
Blocks Function Number
J01 ~ J3F Network digital inputs 63
K01 ~ K3F Network digital outputs 63
NI01 ~ NI1F Network analog inputs 31
NQ01 ~ NQ0F Network analog outputs 15
If the PC client and iSmart are linked, the network information of iSmart and the communication configuration of
the network inputs and outputs can be set.

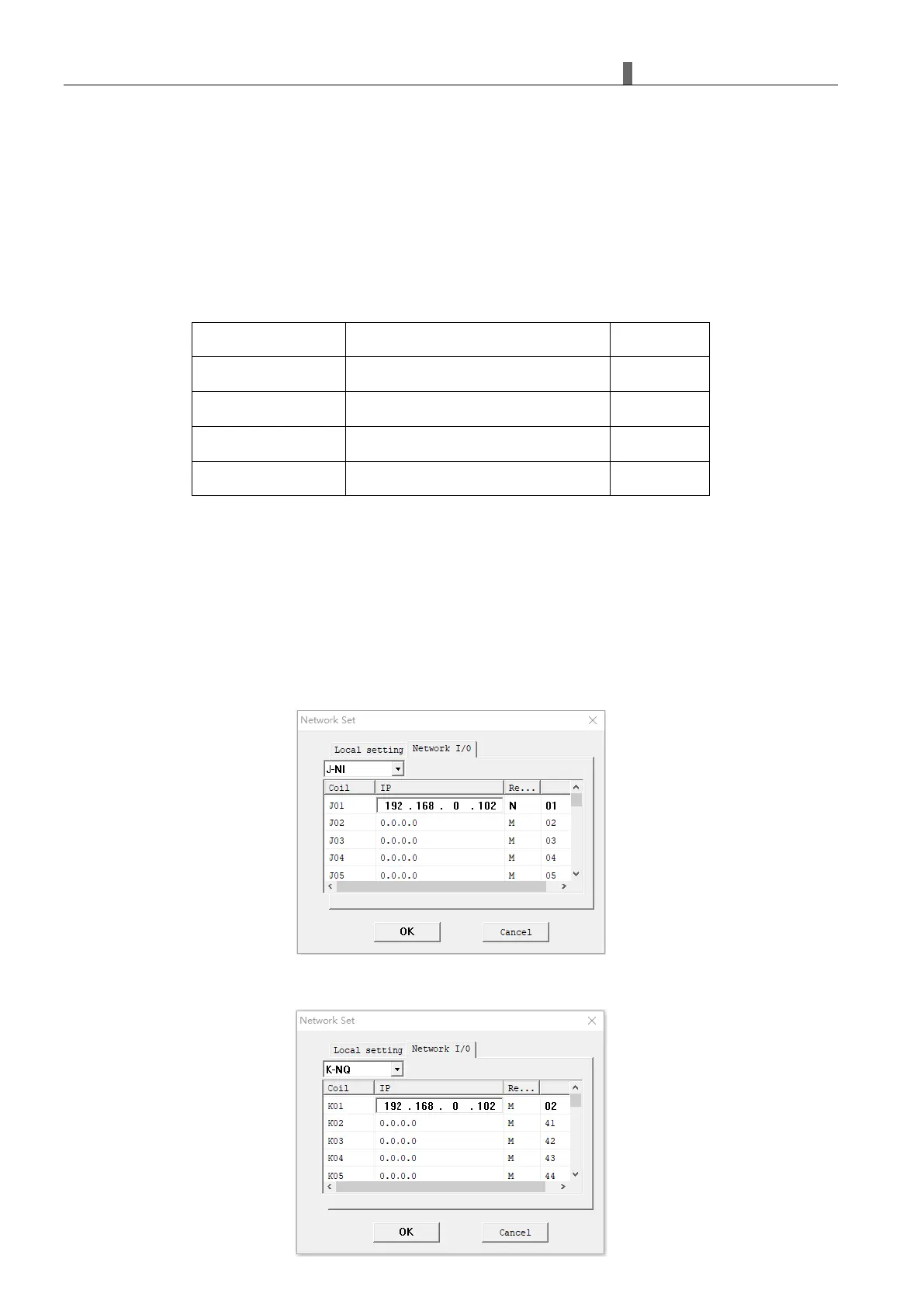

Menu of PC client: " Operation " - > " Network Set " to enter the Network Set.
In " Network IO" column, the master station can be set the communication configuration of network inputs and
outputs.
Legend: The network digital input J01 reads the status of N01 from the slave device 192.168.0.102.
To Next Page
