Program Documentation
The SMT Client software includes the ability to document a program using Symbols and Line Comments.
Symbols are used to label each I/O address up to a length of 12 characters. Line Comments are used to document
sections of a program. Each Line Comment can have up to 4 lines with each line containing up to 50 characters in
length. Below are examples of entering Symbols and Line Comments.
Sy
mbol…

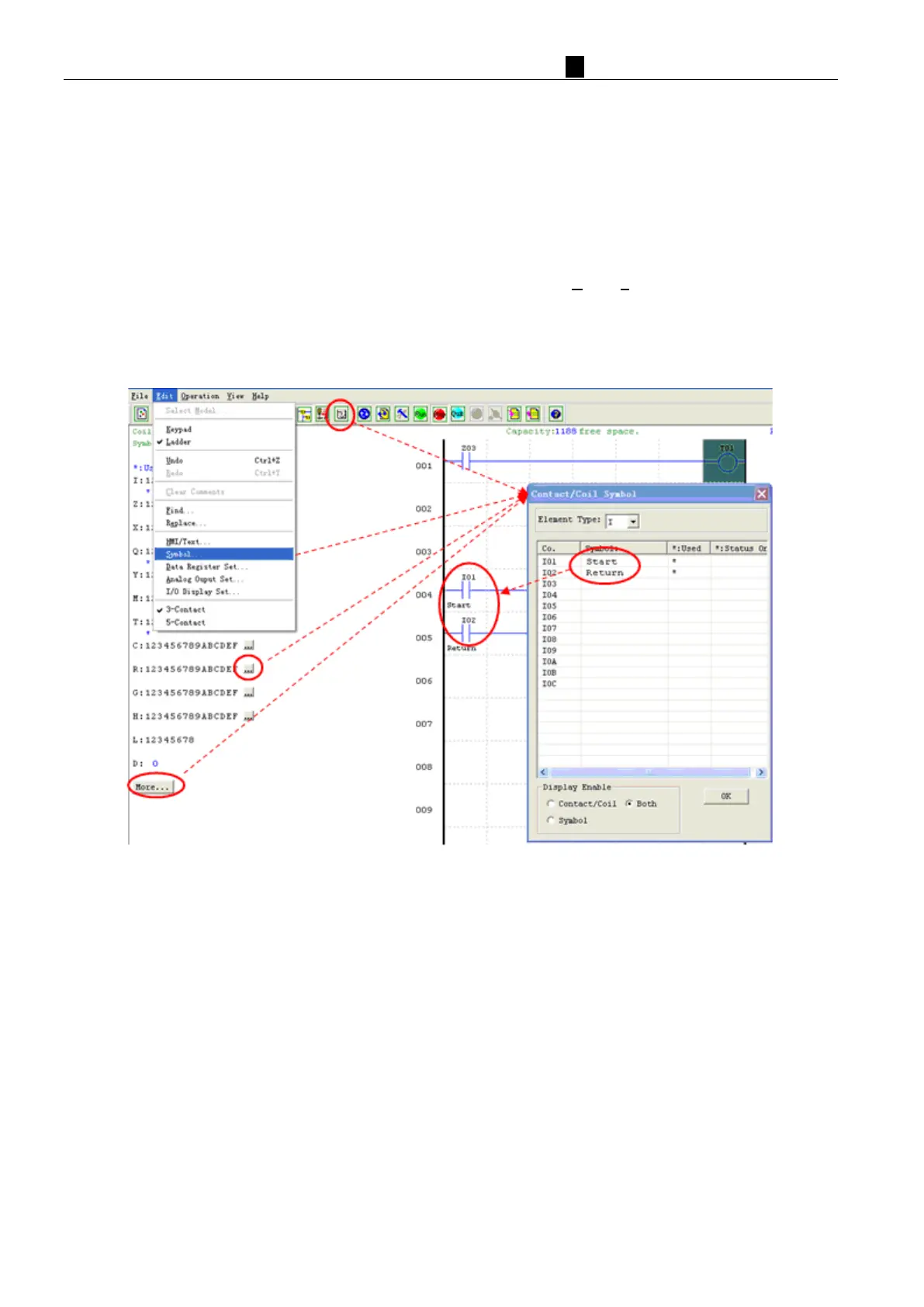

The Symbol editing environment can be access through the menu using the Edit>>Symbol… selection or using the
symbol icon on the main toolbar shown below.
The Symbol editing environment allows for documenting all the contact and coil memory types and selecting display
modes as shown below.
