IMO iSmart V4 - Example

Chapter 6 FBD Block Diagram Programming 192
Example:

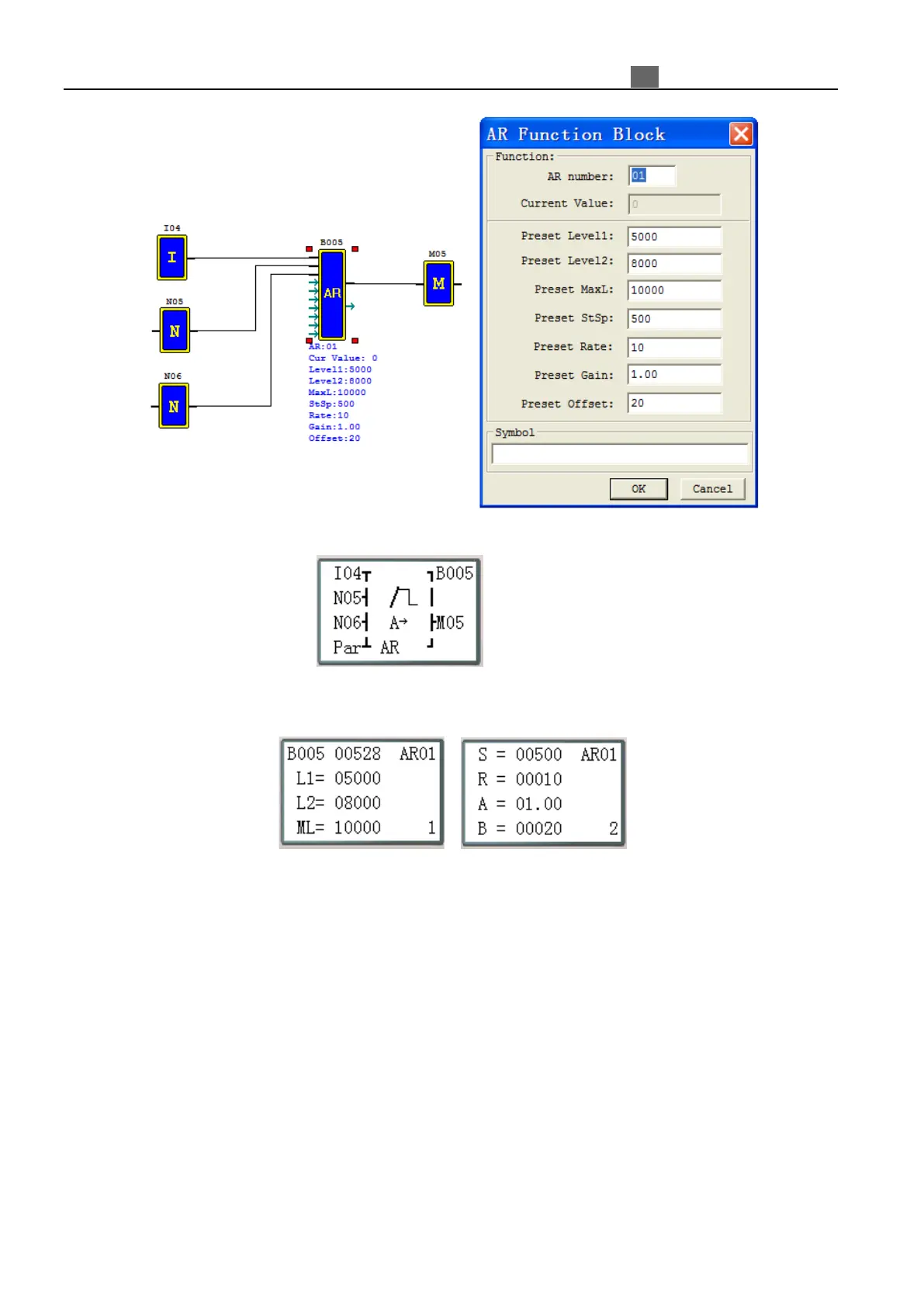

FBD display:
Enable Input
→
Select level input Sel
→
Stop input St
→
Parameter
→
Parameter display:
Parameter display 1
Parameter display 2
AR current value
→
←
Start/Stop level
Preset level1
→
←
Stepping rate
Preset level2
→
←
Proportion value
Max level
→
←
Excursion value
※ Display AR current value when running mode;
※ Press “SEL+←→” button can convert between display1 and display2.
