IMO iSmart V4 - Analog; Analog Input

Chapter 6 FBD Block Diagram Programming 137
Analog
Analog include:
Analog input
A01~A04
Expansion analog input
A05~A08
Analog input count value
V01~V08
Expansion temperature input
AT01 ~ AT 0 4
Expansion analog output
AQ01~AQ04
Analog input and output value can be used as preset value of other function blocks.
Ana
log Input
Number
Range
Meaning
Analog input value
A01~A04
0~999
0~9.99V
Expansion analog input value
A05~A08
0~999
0~9.99V
Analog input count value
V01~V08
0~999999
Expansion temperature input value
AT01 ~ AT 0 4
-1000~6000
-100.0~600.0
℃
V0x = A0x * Gain + OffSet

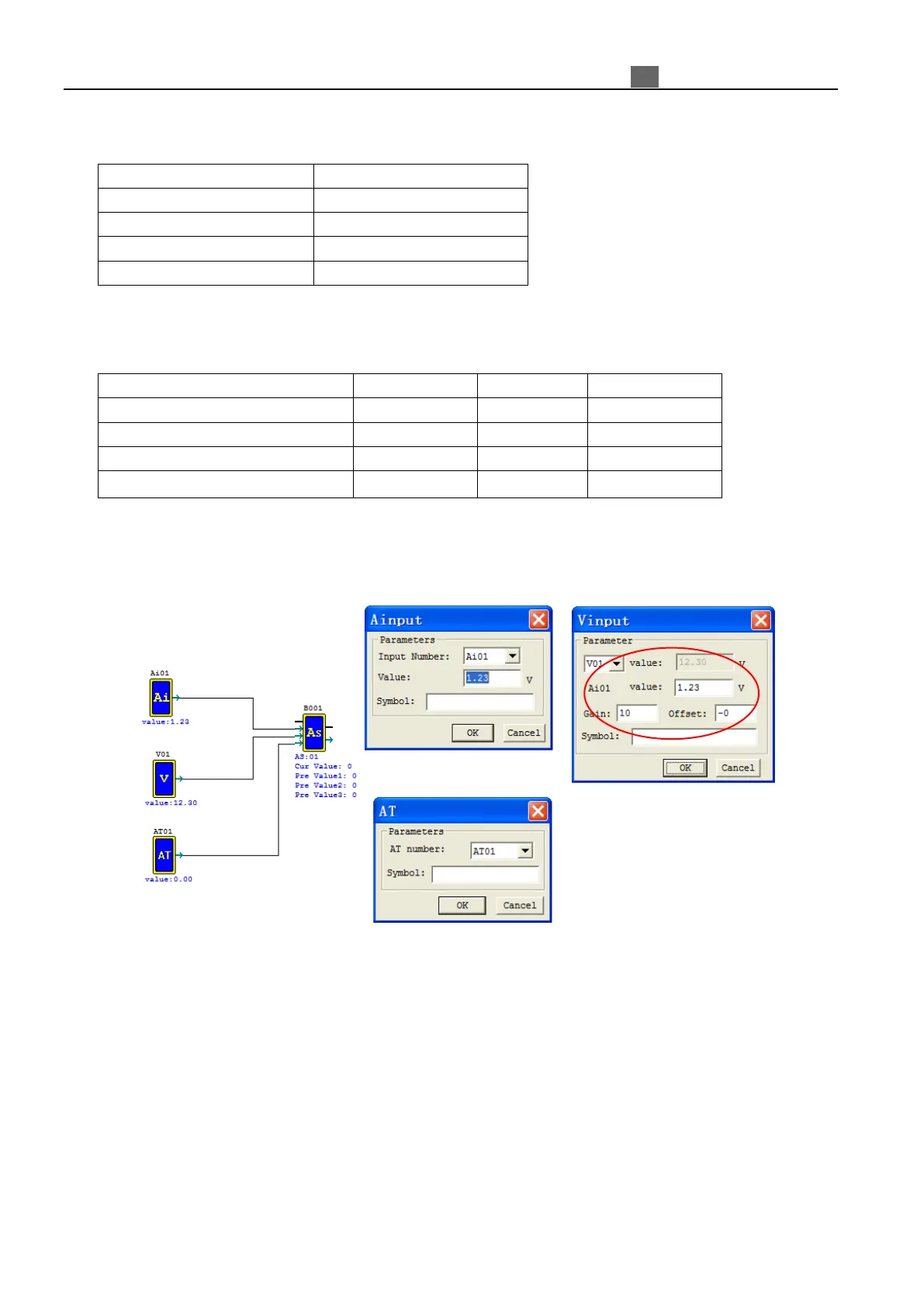

Ex
ample: A01=1.23, V01=A01*10-0=12.30;
B001(AS01)=A01+V01-AT01;
M
ore information about expansion analog input to see: Chapter 8 Expansion Module-Analog Module.
