Chapter 6 FBD Block Diagram Programming 173
RTC Comparator Function Block
There is a maximum of 250 RTC function blocks under FBD mode, can be set mode 0~4 and the function is same as
Ladder mode.
(1

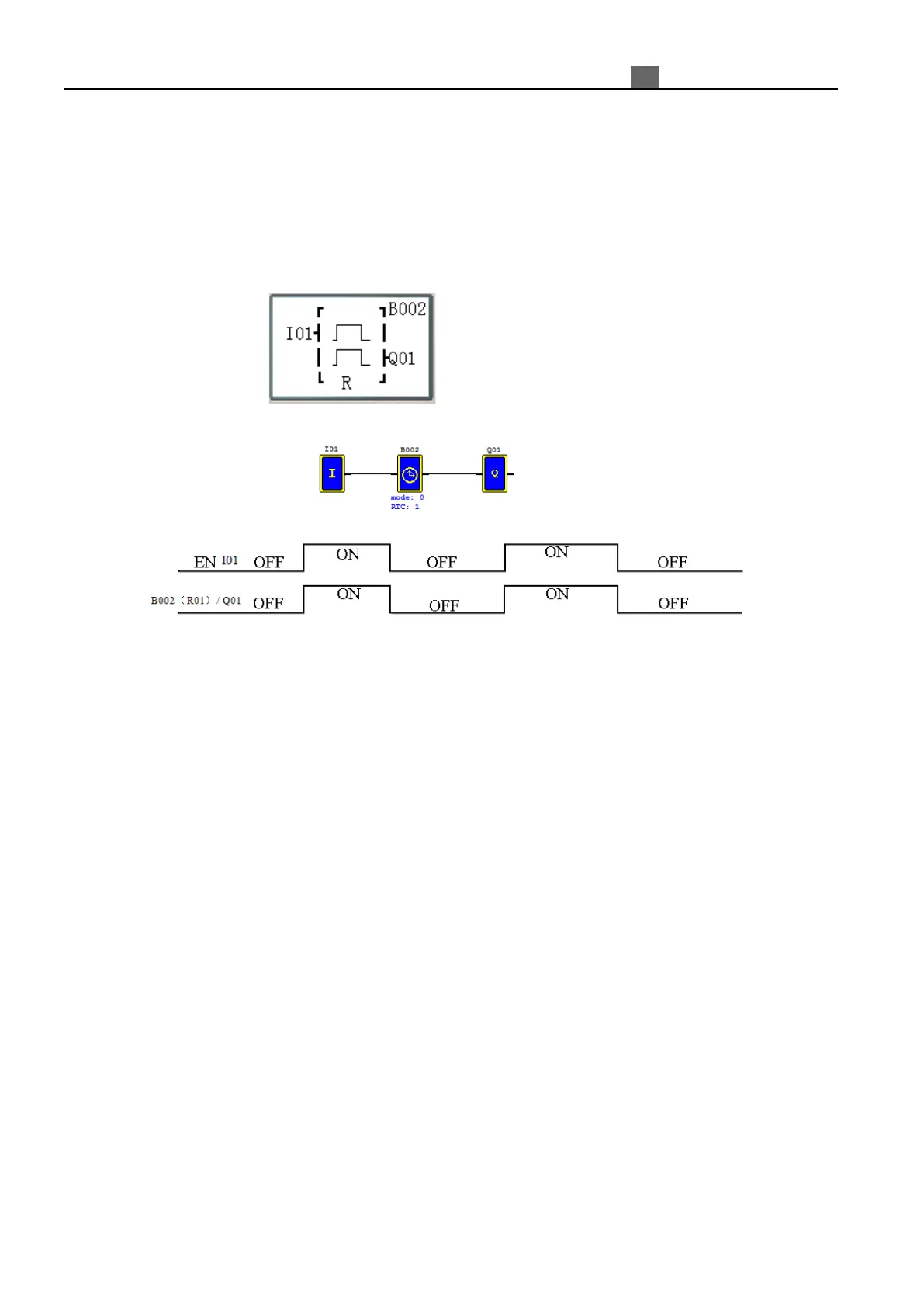

) RTC Mode 0(Internal Coil)
Mode
0 RTC (Internal Coil) used as internal auxiliary coils. No timer preset value and no parameter display.
→
To Next Page
