Chapter 6 FBD Block Diagram Programming 174

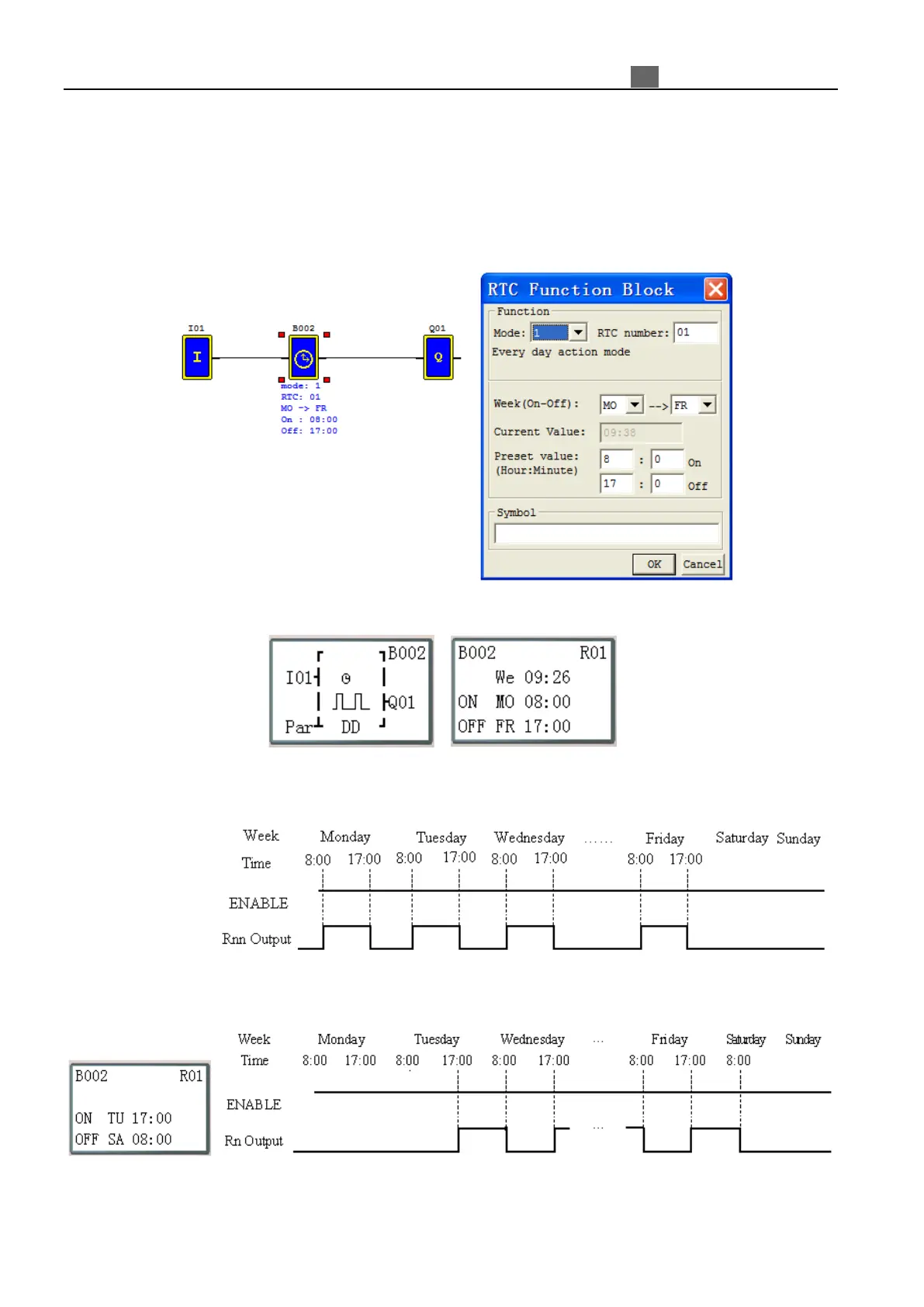

(2) RTC Mode 1(Daily)
Th
e Daily Mode 1 allows the Rxx coil to active based on a fixed time across a defined set of days per week. The
below example1 allows for selection of the number of days per week (i.e., Mon-Fri) and the Day and Time for
the B002 (R01) coil to activate ON, and the Day and Time for the B002 (R01) coil to deactivate OFF.
Exa
mple 1:
→
←
Note: Parameter display current time: week, hour and minute;
Parameter display ON/OFF preset value: week, hour and minute.
Exa
mple 2:
