Analog Comparator Function Block
There is a maximum of 250 analog comparator function blocks under FBD mode, can be set mode 0~7 and the
function is same as Ladder mode.
(1

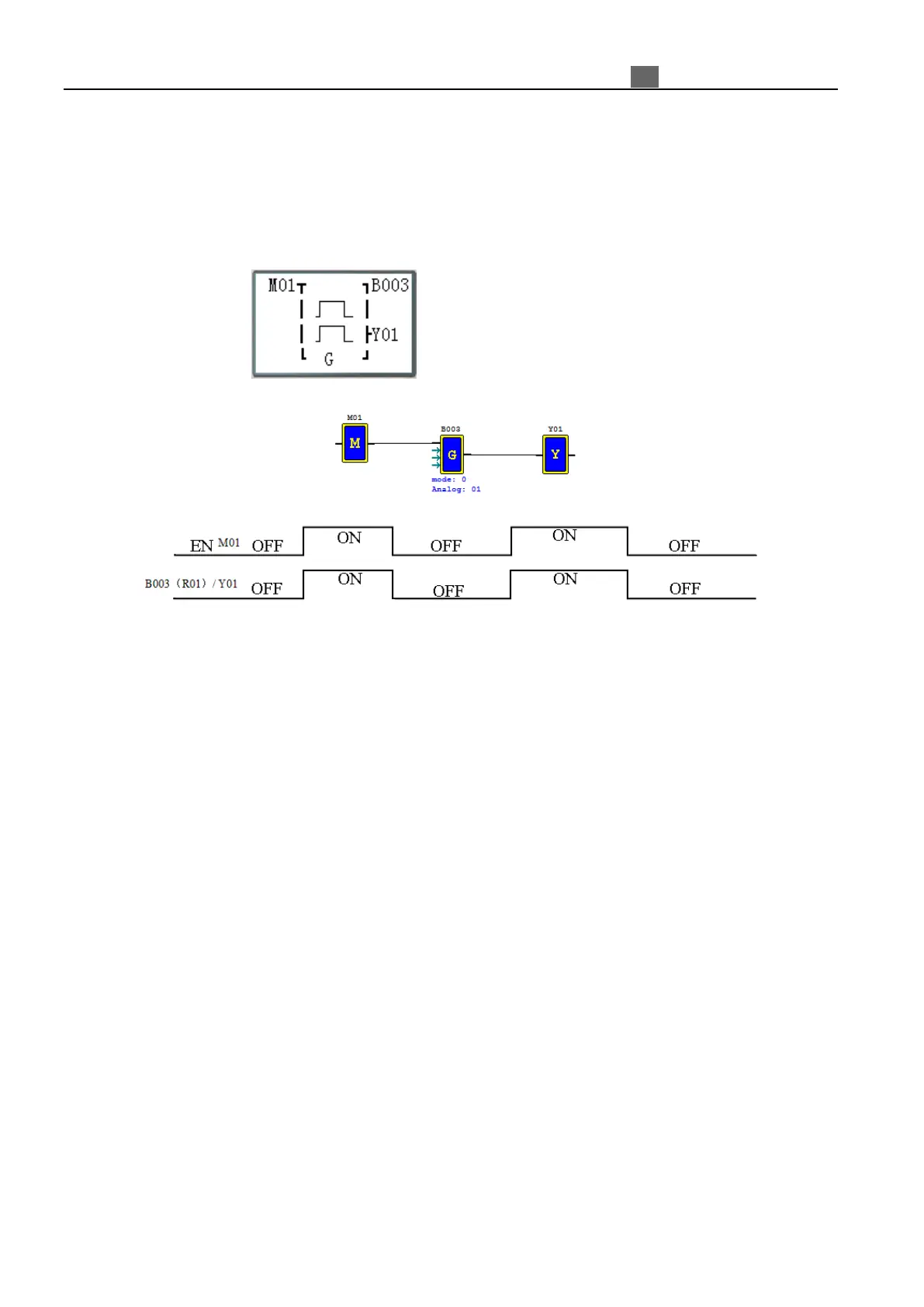

) Analog Comparison Mode 0 (Internal coil)
Mode 0 analog comparator (Internal Coil) used as internal auxiliary coils. No timer preset value and no parameter
display.
→
