Chapter 6 FBD Block Diagram Programming 164
Common Counter function block
There is a maximum of 250 counter function blocks under FBD mode, can be set mode 0~6 as common counter and
mode 7~8 as high-speed counter, and the function is same as Ladder mode.

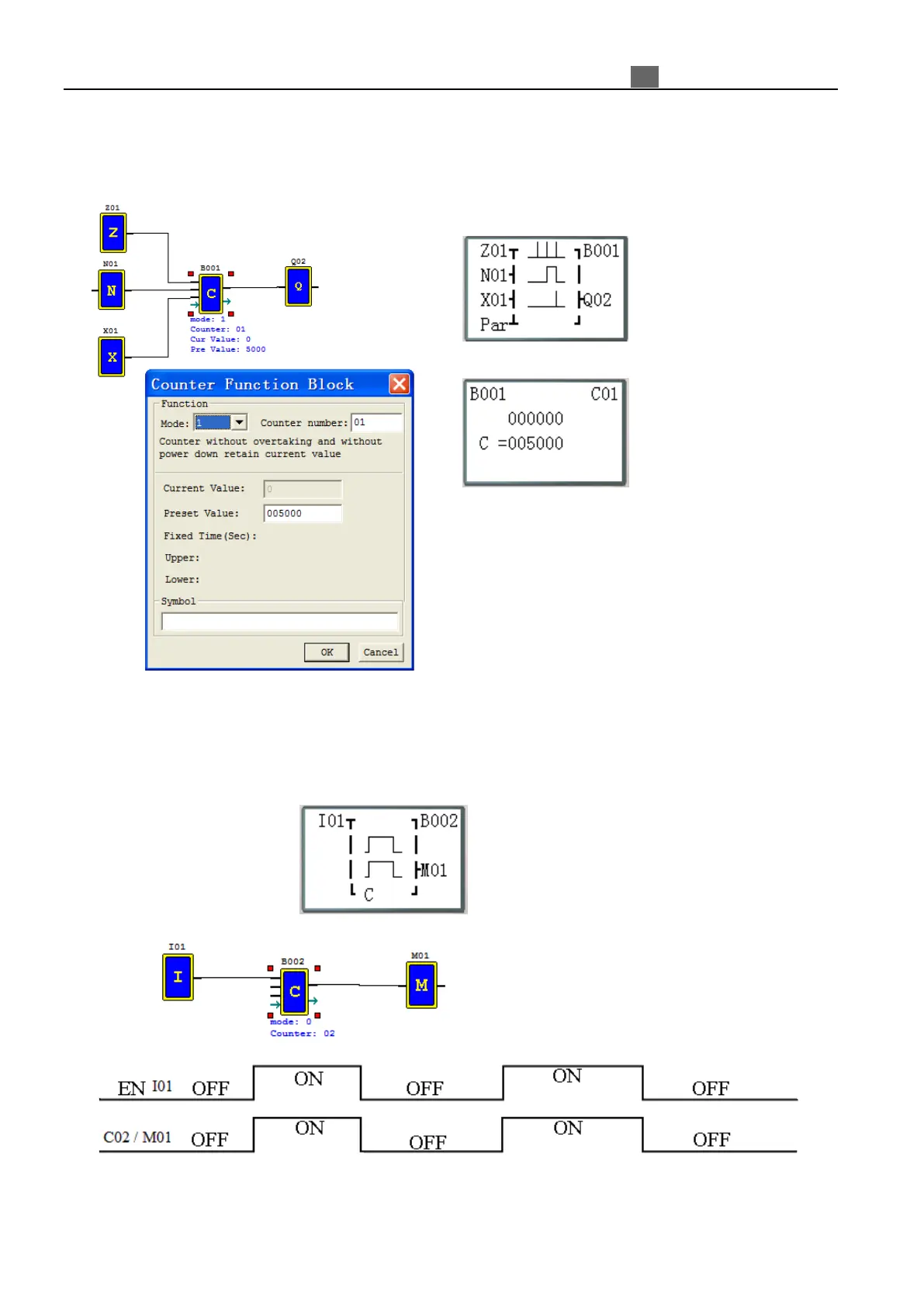

Co
unter edit and display:
F
BD display:
Parameter display:
(
1) Counter Mode 0 (internal coil)
Mode
0 counter (Internal Coil) used as internal auxiliary coils. No timer preset value and no parameter display.
→
