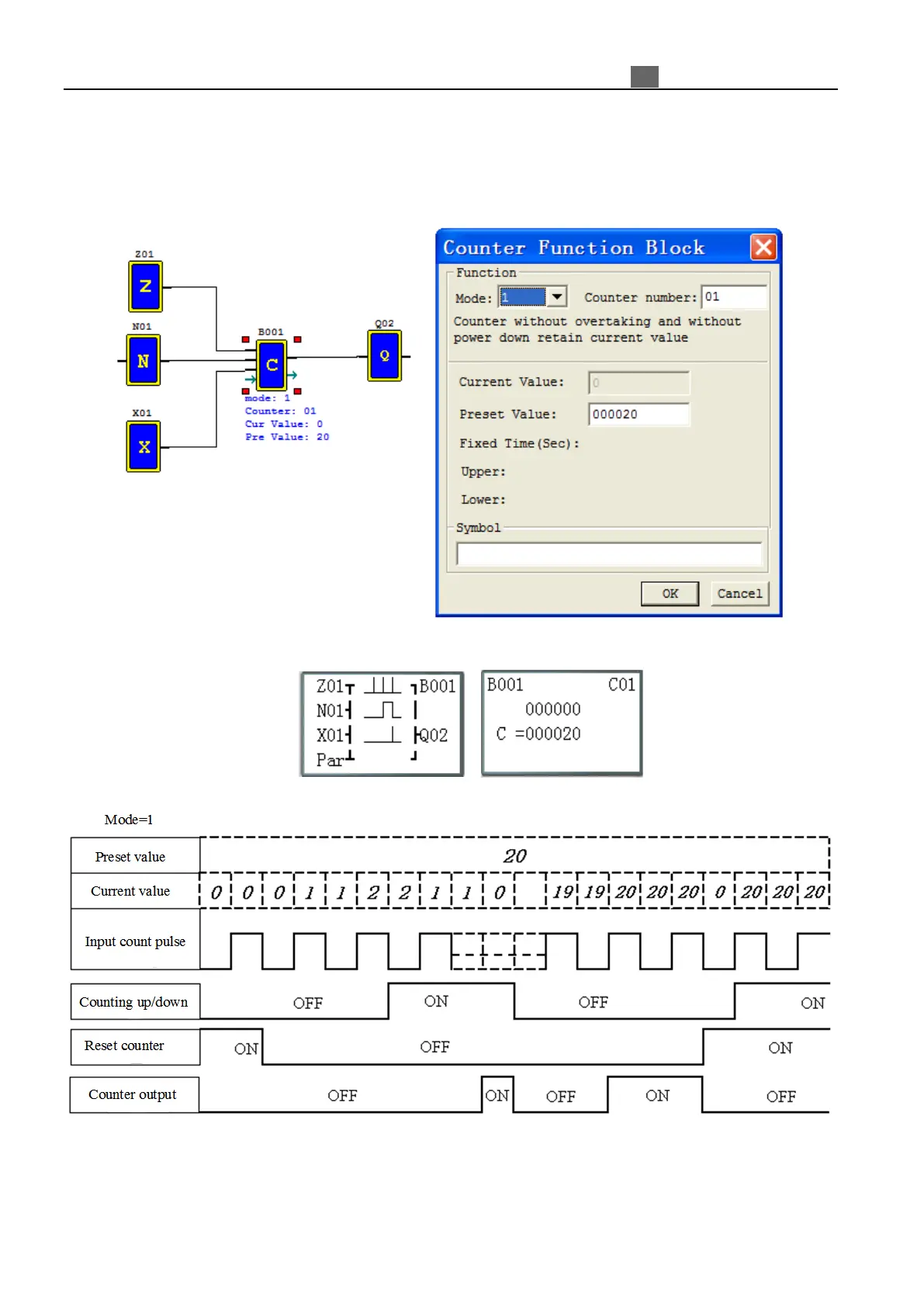

(2) Counter Mode 1 (Fixed Count, Non-Retentive)
Mode 1 Counter will count up to a fixed preset value and stop counting when the current count is equal to the preset value,
or count down to 0 and stop counting when the current count is equal to 0. Additionally, the current count value is non-retentive
and will reset to init value on a powering up to the smart relay.
Counting Input
→
→
→
※ Under this mode, the counter current value will be initial value when the smart is power up or switching between
RUN and STOP. The init value is 0 if the counter configured as counting up, else, it is preset value.
