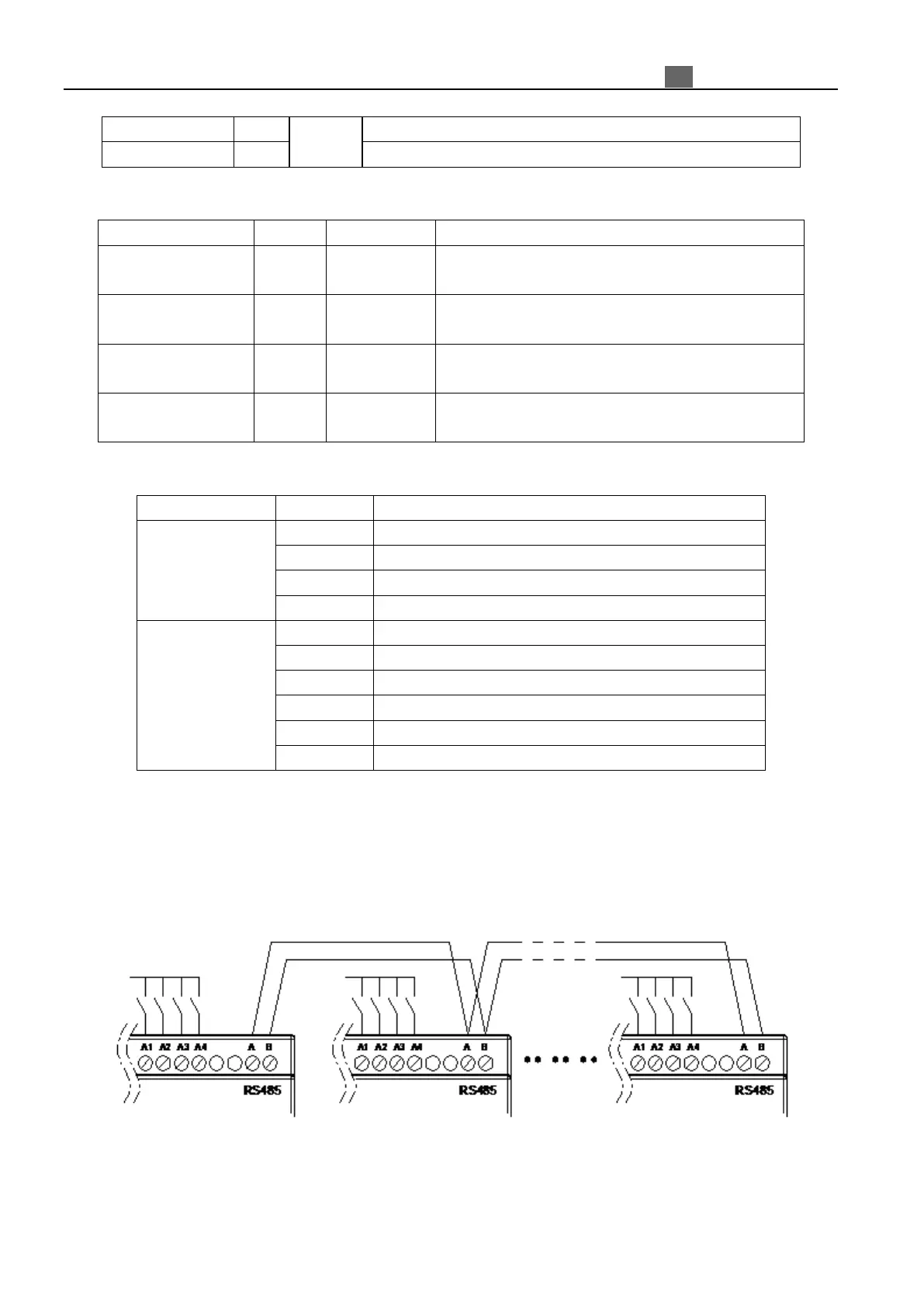

IMO iSmart V4 - IO Link Function; Remote IO Function

Chapter 8 20 Points RS485 type Models Instruction 205
Function parameters:
ID SET
01

ID setting (00~99)
REMOTE I/O
N

Remote I/O Mode (N: none M: Master S: Slave)
Function description:
Function
ID SET
REMOTE I/O
Description
Remote IO function 00~99 M & S
Up to 2 additional iSmart units can be configured as
Remote I/O nodes (master and slave);
IO Link function 0~7 N
Up to 8 additional iSmart units can be configured as
IO Link and ID must be continuous 0~7;
MU instruction 1~99 N
MU can be enabled only when no remote IO function
and IO Link function;
Modbus RTU slave 1~99 N
Modbus RTU slave is effective when no remote IO
function, IO Link function and MU instruction;
Communication parameters:
Content Data Meaning
Format
0
8/N/2 Data 8bits, No Parity, 2 Stop bits.
1
8/E/1 Data 8bits, Even Parity, 1 Stop bit.
2
8/0/1 Data 8bits, Odd Parity, 1 Stop bit.
3
8/N/1 Data 8bits, No Parity, 1 Stop bit.
Baud Rate
0
4800 bps
1
9600 bps
2
19200 bps
3
38400 bps
4 57600 bps
5 115200 bps
※ iSmart default ID SET=1, and REMOTE I/O=N (no remote I/O).
※ iSmart RS485 port default communication format is 8/N/2 (Data 8bits, No parity, 2 stop bits) and baud rate is
38400bps.
※ The communication parameter setting takes effect after power up again.
