IMO iSmart V4 - Input Specifications

Chapter 7 Hardware Specification 195
Input Specifications
100~240V AC model
24V AC model
content
SMT-EA24-R10-V4
SMT-EA-R20-V4

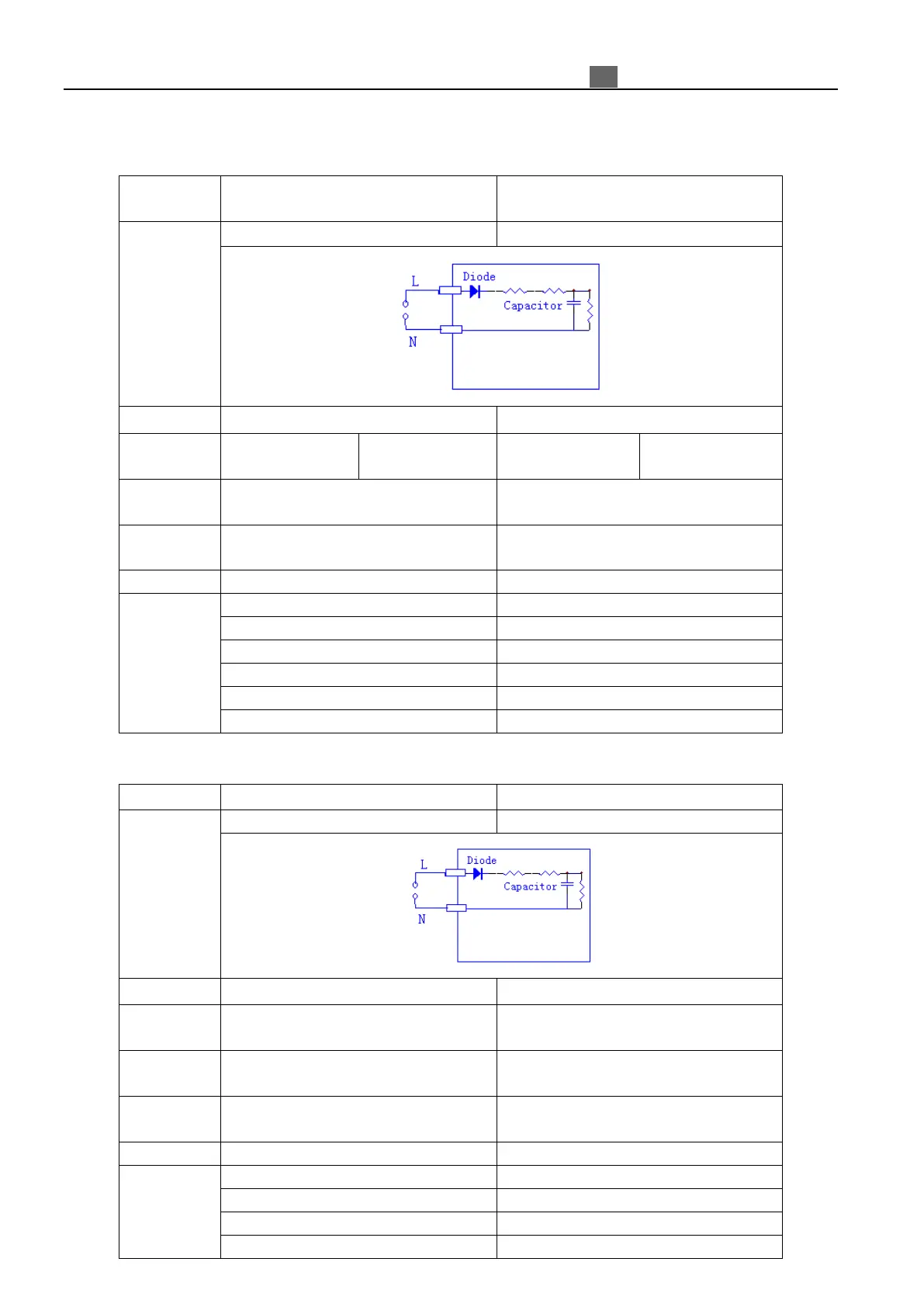

Input circuitry
I01~I06, I09,I0A
I01~I09, I0A, I0B, I0C
number
6(digital input)
12(digital input)
Signal current
input
3mA 3mA
ON current
input
> AC 14 V /3mA > AC 14 V/ 3mA
OFF current
input
< AC 6 V /0.85 mA < AC 6 V / 0.85mA
wire length
< / = 100 m
< / = 100 m
response time
of input
On=>Off
On=>Off
Typical 50/60 Hz 90/90ms
Typical 50/60 Hz 90/90ms
Off=>On
Off=>On
Typical 50/60 Hz 90/90ms
Typical 50/60 Hz 90/90ms
content
SMT-EA-R10-V4 SMT-BA-R10
SMT-EA-R20-V4 SMT-BA-R20
Input circuitry
I01~I06
I01~I09, I0A, I0B, I0C
number
6(digital input)
12(digital input)
Signal current
input
AC 110V
0.66mA
AC 220V
1.3mA
AC 110V
0.55mA
AC 220V
1.2mA
ON current
input
> AC 79 V /0.41mA > AC 79 V/ 0.4mA
OFF current
input
< AC 40 V /0.28mA < AC 40 V / 0.15mA
wire length
< / = 100 m
< / = 100 m
response time
of input
On=>Off
On=>Off
Typical 50/60 Hz 50/45 ms(AC 110 V)
Typical 50/60 Hz 50/45 ms(AC 110 V)
Typical 50/60 Hz 90/85 ms(AC 220 V)
Typical 50/60 Hz 90/85 ms(AC 220 V)
Off=>On
Off=>On
Typical 50/60 Hz 50/45 ms(AC 110 V)
Typical 50/60 Hz 50/45 ms(AC 110 V)
Typical 50/60 Hz 22/18 ms(AC 220 V)
Typical 50/60 Hz 22/18 ms(AC 220 V)
