Chapter 9 Expansion Module 224
Temperature Input Module 4PT
The 4 channel 12bits temperature (PT100) analog input module, 4PT, has the corresponding registers with
AT01~AT04.
content
standard
Temperature input range -100℃~600℃
Digital output -100.0℃~600.0℃
Differentiation
0.1℃
Definition
±1﹪
The input value of SMT-4PT is over range if wiring error or no input, SMT will not update the corresponding
channel, and the corresponding Error coil (M) turns ON.
coil
AT number
M34
AT01
SMT-4PT channel 1 error
M35
AT02
SMT-4PT channel 2 error
M36
AT03
SMT-4PT channel 3 error
M37
AT04
SMT-4PT channel 4 error

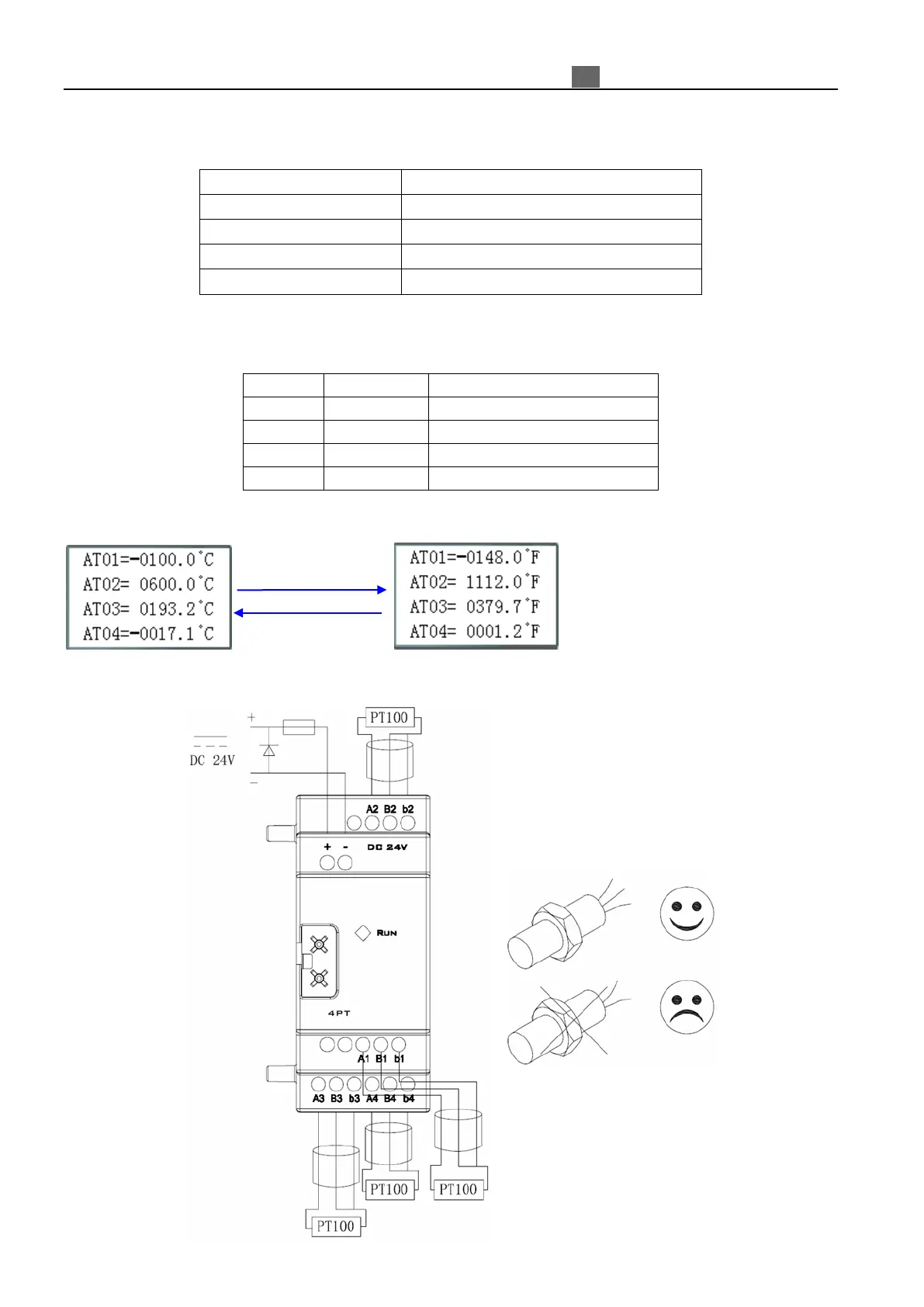

The current value of 4PT input displaying as shown below:
Wiring
Press key:
SEL+→
SEL+←
