IMO iSmart V4 - Original Screen

Chapter 3 Program Tools 47

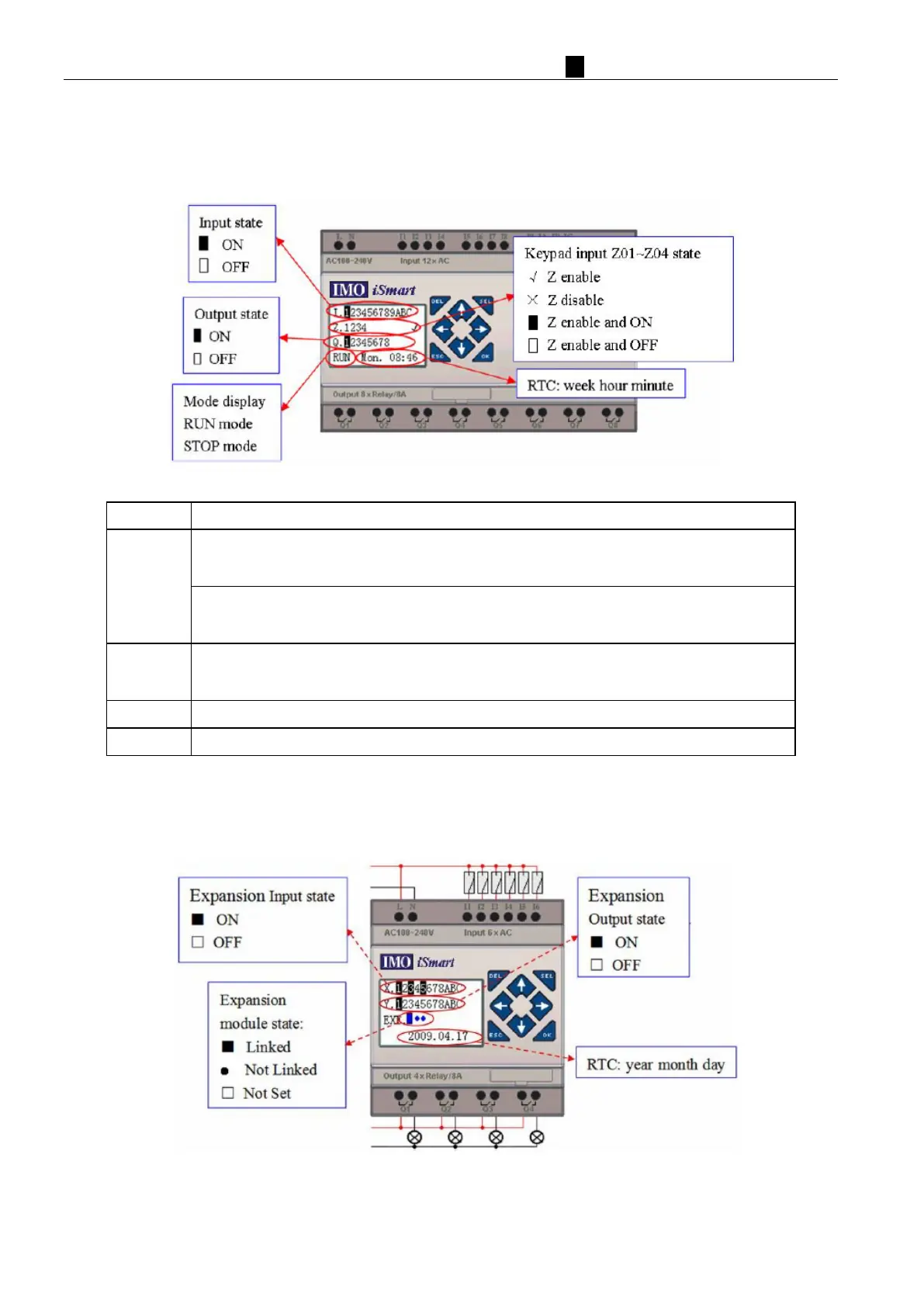

Original Screen
LCD displays 4-line state
◎ Original screen as power on
P
ress the button:
ESC
Enter Main Menu screen
SEL+↑ ↓
Or ↑ ↓
Under LADDER Mode,DRD8 current value=0, display the state of relays (I/Z/Q ⇔ X/Y
⇔ M ⇔ N ⇔ T ⇔ C ⇔ R ⇔ G ⇔ A ⇔ AT ⇔ AQ) ⇔ Original Screen
Under FBD Mode, DRD8 current value=0, display the state of relays (I/Z/Q ⇔ X/Y ⇔ M
⇔ N ⇔ A ⇔ AT ⇔ AQ) ⇔ Original Screen
SEL+← →
Or ← →
When display A05~A08 value, change voltage or current mode
When display AT01~AT04 value, change Celsius display or Fahrenheit display
SEL
H Function will be displayed whose mode is 1 as the button is pressed.
SEL+OK
Enter RTC setting screen
◎ Expansion display State
※
Expansion module setting: refer to Main Menu “SET”
