◎ Other Display State

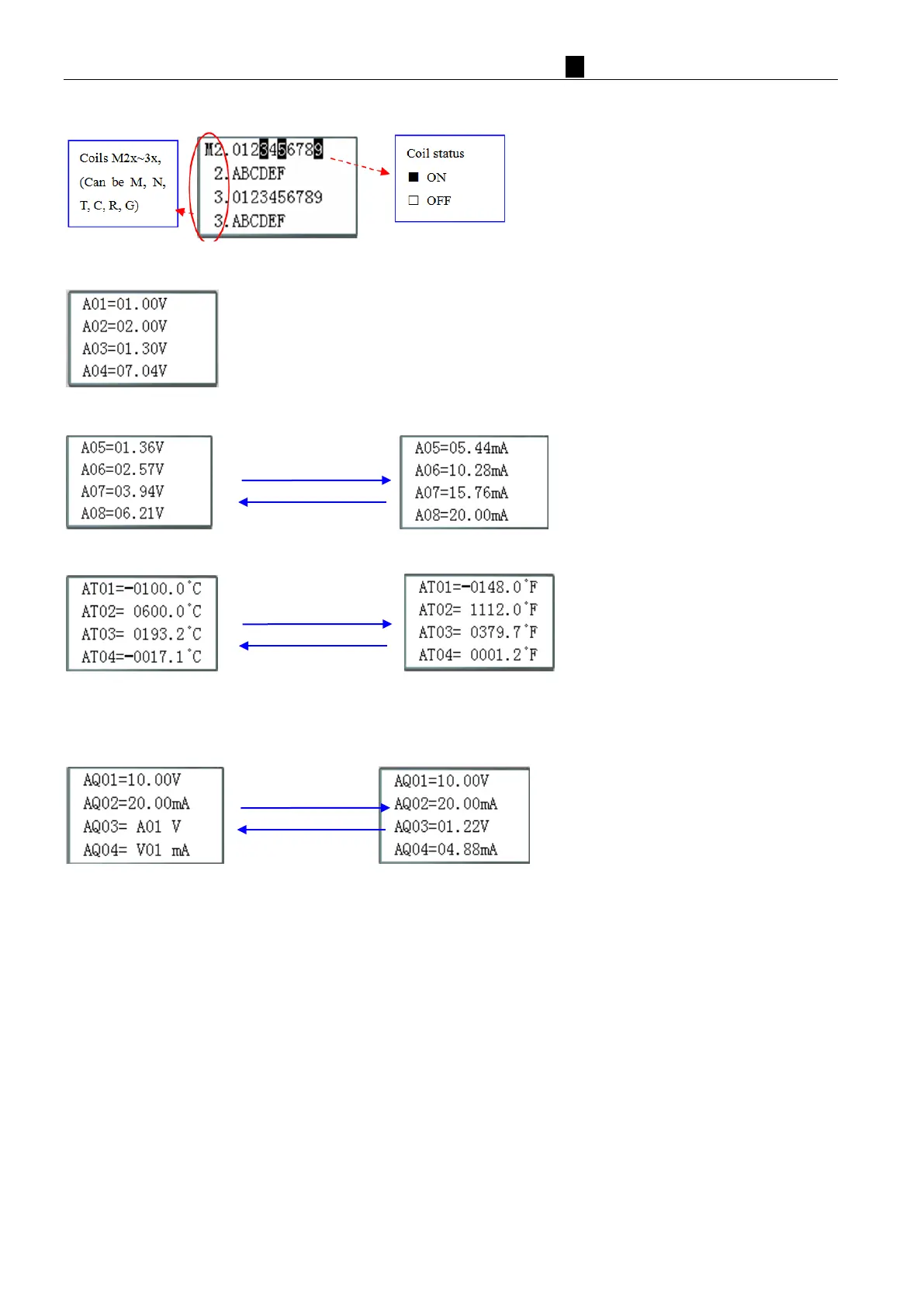

Coils M、N、T、C、R、G status: (T/C/R/G display only Ladder mode)
A
nalog input A01~A04: 0~9.99V
E
xpansion Analog input A05~A08: 0~9.99V or 0~20.00mA
E
xpansion temperature analog input AT01~AT04: -100.0~600.0 Cent degree or -148.0~1112.0 Fahrenheit degree
E
xpansion analog output AQ01~AQ04: 0~10.00V or 0~20.00mA
※ Setting voltage mode or current mode, more information to see: Chapter 4: Relay Ladder Logic
Programming-AQ(Analog Output).
◎ H
idden I/O interface function
:
iS
mart can display the states for 14 sorts of coil, as shown in below table. Each bit of DRD8 current valu
e
(exc
ept bit 14 and 15) determines the corresponding IO interface to be displayed or not. When one bit equal 1, the
corresponding I/O interface is hidden (mean you cannot display the I/O interface by pressing SEL+↑ ↓ or ↑ ↓).
Press key:
→, SEL+→
←, SEL+←
Run
Stop
Press key:
→, SEL+→
←, SEL+←
