Chapter 3 Program Tools 49
Num
I/O interface
DRD8 current value
0
I/Z/Q
I01~I0C
，
Z01~Z04
，
Q01~Q08
Bit0:* always display
1
X/Y
X01~X0C
，
Y01~Y0C
Bit1:=0 Display; =1 Not displayed
2
M1
M01~M1F
Bit2:=0 Display; =1 Not displayed
3
M2
M20~M3F
Bit3:=0 Display; =1 Not displayed
4
M3
M40~M5F
Bit4:=0 Display; =1 Not displayed
5
M4
M60~M7F
Bit5:=0 Display; =1 Not displayed
6
N1
N01~N1F
Bit6:=0 Display; =1 Not displayed
7
N2
N20~N3F
Bit7:=0 Display; =1 Not displayed
8
N3
N40~N5F
Bit8:=0 Display; =1 Not displayed
9
N4
N60~N7F
Bit9:=0 Display; =1 Not displayed
10
T
T01~T1F
Bit10:=0 Display; =1 Not displayed
11
C
C01~C1F
Bit11:=0 Display; =1 Not displayed
12
R
R01~R1F
Bit12:=0 Display; =1 Not displayed
13
G
G01~G1F
Bit13:=0 Display; =1 Not displayed
A1
A01~A04
always display
A5
A05~A08
always display
AT
AT01 ~ AT 0 4
always display
AQ
AQ01~AQ04
always display
e
.g., In order to hide some, I/O interfaces. You can set DRD8 current value through running a Ladder/FBD program,
you also can set it by PC-LINK as shown below:

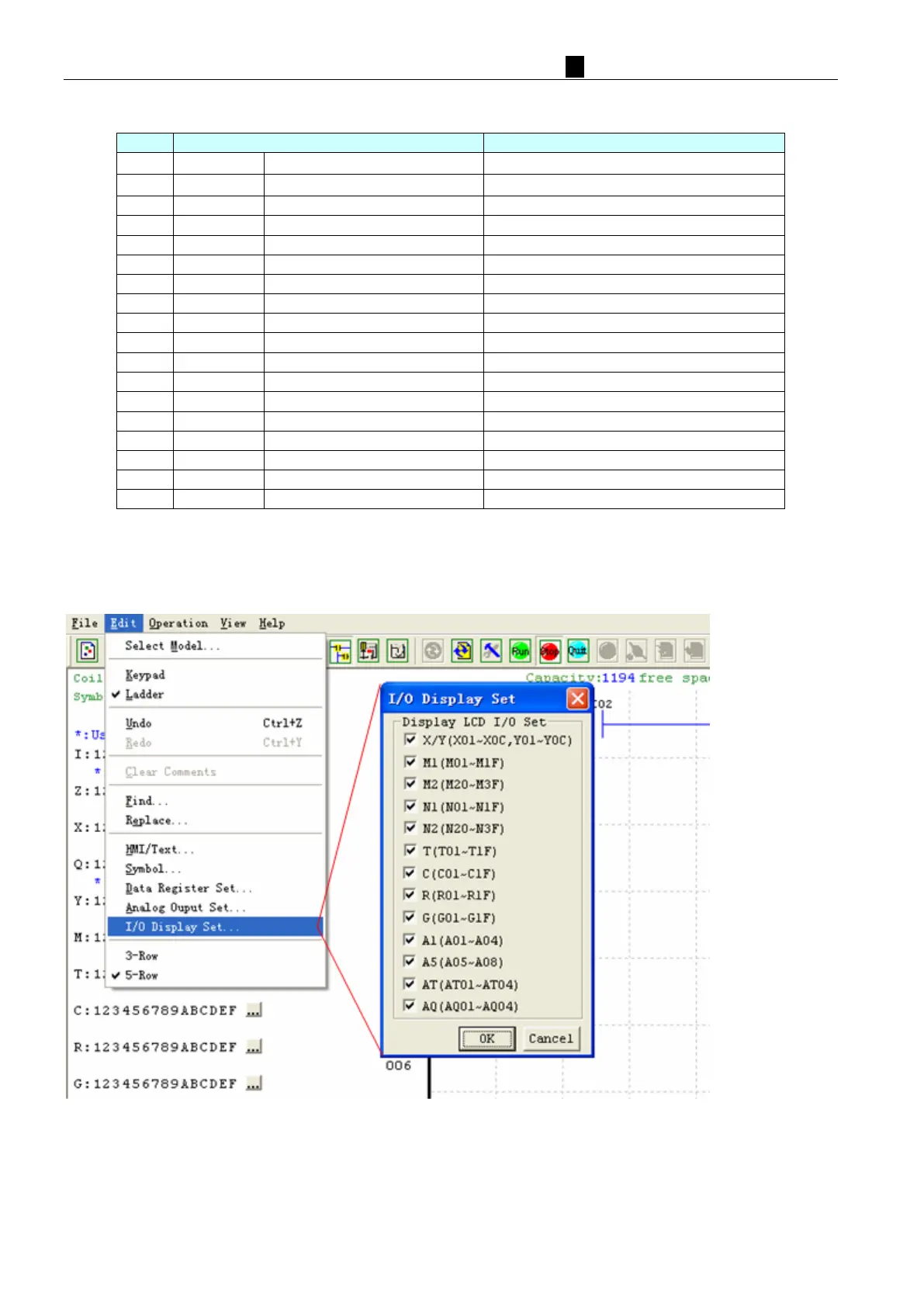

1. O
pen “Edit>I/O Display Set…”:
